KIA Sportage (2000) – fuse box diagram
Year of production: 2000

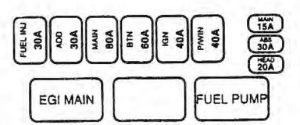

Engine compartment
| Description | Ampere rating [A] | Protected component |
| FUEL INJ | 30 | Fuel injection system |
| ADD | 30 | A/C condenser fan |
| MAIN | 80 | For protection of all circuit |
| BTN | 60 | Brake lights, license plate lights, dome light, hazard lights |
| IGN | 30 | Ignition |
| P/WIN | 40 | Power windows |
| MAIN | 15 | Fuel pump injectors, main relay, fuel pump relay |
| ABS | 30 | Anti-lock brake system |
| HEAD | 20 | Headlight |
Passenger Compartment Fuse Panel Description (Driver’s Side Kick Panel)
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
