Subaru Baja (2005) – fuse box diagram

Year of production: 2005

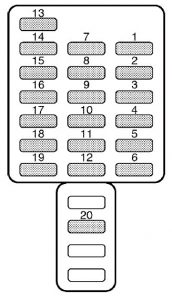

Fuse panel located behind the coin tray

Fuse	Ampere rating [A]	Circuit
1	15	Heater fan
2	15	Heater fan
3	15	Power door lock, Keyless entry
4	20	Mirror heater. Cigarette lighter, Remote controlled rear view mirrors
5	10	Tail light, Parking light
6	15	SRS airbag
7	15	Front fog light
8	30	ABS solenoid
9	15	Radio, Clock
10	15	Trailer
11	15	Engine ignition system, SRS airbag
12	10	Illumination brightness control
13	15	Fuel pump
14	10	Rear window wiper and washer
15	30	Windshield wiper and washer
16	20	Brake light
17	15	Air conditioner
18	15	Backup light, Cruise control, ABS control
19	20	Wiper deicer, Sports activity light, Cargo lamp
20	20	Accessory power socket, Seat heater

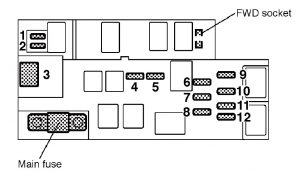

Fuse panel located in the engine compartment

Fuse	Ampere rating [A]	Power consumer
1	20	Radiator cooling fan (Main)
2	20	Radiator cooling fan (Sub)
3	50	ABS motor
4	20	Rear window defogger
5	15	Hazard warning flasher, Horn
6	15	Meter, SRS airbag system warning light
7	10	Automatic transmission control unit, ABS UNIT
8	10	Alternator
9	15	Headlight (right side)
10	15	Headlight (left side)
11	20	Lighting switch
12	15	Clock, Interior light

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
