Lexus ES350 (2010 – 2012) – fuse box diagram

Year of production: 2010, 2011, 2012

Engine compartment

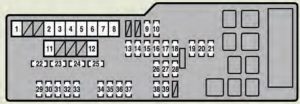

Lexus ES350 - fuse box -engine compartment
Lexus ES350 – fuse box -engine compartment
Fuse Ampere rating [A] Circuit protected
1 PSB 30 Pre-collision seat belt
2 H-LP CLN 30 —
3 P-P / SEAT 30 Power seat
4 RR DEF 50 Rear window defogger
5 ABS NO.2 30 Anti-lock brake system, vehicle stability control system
6 FAN MAIN 50 Electric cooling fans
7 ABS NO.1 50 Anti-lock brake system, vehicle stability control system
8 HTR 50 Air conditioning system
9 RR FOG 10 —
10 ALT-CDS 10 Alternator condenser
11 ST 30 Starting system
12 ALT 140 PSB, H-LP CLN, P-P/SEAT, RR DEF, ABS NO.2, FAN MAIN, ABS NO.1, HTR, RR FOG, RR DOOR RH, RR DOOR LH, FUEL OPN, FR FOG, OBD, STOP, TI & TE, A/C, PWR, DOOR NO.2, S/ROOF, GAUGE NO.2, POWER, P/SEAT
13 STR LOCK 20 Steering lock system
14 IG2 20 GAUGE NO.2, IGN, multiport fuel injection system/sequential multiport fuel injection system
15 HAZ 15 Turn signal lights
16 ETCS 10 Electronic throttle control system
17 E-ACM 10 Electric active control mount
18 A/C CTRL PNL 15 Air conditioning system
19 MAYDAY 10 Mayday system
20 ALT-S 7,5 Charging system
21 AM2 7,5 Starting system
22 EFI MAIN 30 EFI NO.2, EFI NO.3, fuel system, ECT system
23 AMP 30 Audio system
24 AMP2 30 Audio system
25 DOOR NO.1 25 Power door lock system
26 RADIO NO.1 15 Audio system
27 ECU-B NO.1 10 ECU powers
28 DOME 10 Interior lights, meters, vanity light
29 H-LP (LH) 15 Left-hand headlight (high beam)
30 H-LP (RH) 15 Right-hand headlight (high beam)
31 H-LP (LL) 15 Left-hand headlight (low beam)
32 H-LP (RL) 15 Right-hand headlight (low beam)
33 HORN 10 Horns
34 EFI NO.1 10 Multiport fuel injection system/sequential multiport fuel injection system, ECT system
35 MPX-B 10 Meters
36 A/F 20 Multiport fuel injection system/sequential multiport fuel injection system
37 S-HORN 7,5 S-Horn
38 EFI NO.2 15 Multiport fuel injection system/sequential multiport fuel injection system
39 EFI NO.3 10 Multiport fuel injection system/sequential multiport fuel injection system



Driver’s side instrument panel

Lexus ES350 - fuse box -driver's side instrument panel` class=`wp-image-13139 size-medium` height=`155` loading=`lazy` sizes=`(max-width: 300px) 100vw, 300px` src=`/uploads/f0a/a58/d06/f0aa58d06620cea8531fe49e788f60c2.jpg` srcset=`/uploads/f0a/a58/d06/f0aa58d06620cea8531fe49e788f60c2.jpg 300w, 768w, 926w` width=`300` /> <figcaption class=`wp-caption-text` id=`caption-attachment-13139`>Lexus ES350 – fuse box -driver’s side instrument panel</figcaption> </figure> <table class=`table table-hover table-bordered`> <tbody> <tr> <td colspan=`2Fuse Ampere rating [A] Circuit protected 1 RR DOOR RH 25 Power window 2 RR DOOR LH 25 Power window 3 FUEL OPN 7,5 Fuel filler door opener 4 FR FOG 15 Front fog lights 5 OBD 7,5 On-board diagnosis system 6 ECU-B NO.2 7,5 ECU powers 7 STOP 10 Stop lights 8 TI & TE 30 Tilt and telescopic steering 9 A/C 7,5 Air conditioning system 10 PWR 25 Power windows 11 DOOR NO.2 25 Main body ECU 12 S/ROOF 30 Moon roof 13 TAIL 10 Front and rear side marker lights, tail lights, license plate lights 14 PANEL 7,5 Switch illumination 15 ECU-IG NO. 1 10 Moon roof, seat heaters, power windows, clock, automatic windshield wiper, electric cooling fans, driving position memory system, seat position memory system 16 ECU-IG NO. 2 7,5 Anti-lock brake system, vehicle stability control system, traction control system, brake assist system, cruise control system, stop lights, shift lock control system 17 A/C NO. 2 10 Air conditioning system, rear window defogger 18 WASH 10 Windshield washer 19 S-HTR 20 Seat heaters, air conditioning system 20 GAUGE NO. 1 10 Emergency flashers, back-up lights, rear sunshade, charging system 21 WIP 25 Windshield wipers 22 H-LP LVL 7,5 Headlight leveling system 23 IGN 10 Multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system, steering lock system 24 GAUGE NO. 2 7,5 Meters 25 ECU-ACC 7,5 Clock, main body ECU 26 CIG 20 Cigarette lighter 27 PWR OUTLET 20 Power outlet 28 RADIO NO. 2 7,5 Audio system 29 MIR HTR 15 Outside rear view mirror defoggers 30 POWER 30 Power window 31 P/SEAT 30 Power seat



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
