Lexus ES300 (1999) – fuse box diagram

Year of production: 1999

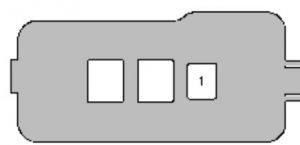

Engine compartment

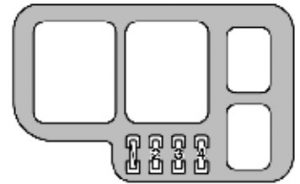

Engine compartment

Engine compartment

Driver’s side instrument panel

Fuse Ampere rating [A] Circuit protected 1 ABS 60 Anti–lock brake system 2 DRL NO. 2 5 Daytime Running Light System 3 HEAD LH (LWR) 10 Left–hand headlight (low beam) 4 HEAD RH (LWR) 10 Right–hand headlight (low beam) 5 ALT 100 Charging system 6 T–STK 40 No circuit 7 HTR 50 Air conditioning system, Seat heater 8 MAIN 40 Headlight, Starting system 9 DOME 7,5 Theft deterrent system, Clock, Door courtesy light, Interior light, Ignition switch light, Vanity light, Wireless remote control system 10 ECU–B 10 Air conditioning system, Power seat system 11 RAD NO.1 20 Audio system 12 HAZARD 10 Emergency flashers, Turn signal lights 13 AM2 30 Starting system 14 TEL 5 Telephone 15 HEAD LH (UPR 15 Left–hand headlight (high beam) 16 ALT–S 5 Charging system 17 HEAD RH (UPR) 15 Right–hand headlight (high beam) 18 EFI 15 Multiport fuel injection 19 HORN 10 Theft deterrent system 20 RDI 30 Electronic cooling fan system 21 CDS 30 Air conditioning system 22 A/F HTR 25 Air fuel ration sensor 23 A/C 10 No circuit 24 SEAT–HEATER 20 Seat heater system 25 HEATER 10 Air conditioning system 26 GAUGE 10 Gauges and meters, service reminder indicators and warning buzzers, Back–up light, Door courtesy light, Seat heater, Power window system 27 WIEP 20 Windshield wipers and washer 28 MIRROR-HTR 10 Outside rear view mirror defogger 29 ECU–IG 15 Cruise control system, Anti–lock brake system, Shift lock system, Power brake antenna, Theft deterrent system, Electronic modulated suspension, Wireless remote control 30 IGN 5 SRS airbag system, Multiport fuel injection 31 STOP 15 Stop lights, High mounted stoplight, Cruise control system, Electronic modulated suspension, Anti–lock brake system, Shift lock system, Power seat system, Multiport fuel injection 32 TAIL 10 Tail light, Side marker lights, License plate lights 33 POWER-OUTLET 15 Power outlet 34 OBD 7,5 On–board diagnosis system 35 FOG 15 Fog lamps 36 STARTER 5 Starting system 37 DOOR 25 Door courtesy light, Theft deterrent system, Power door lock system, Trunk lid opener, Fuel filler door opener 38 PANEL 7,5 Instrument panlel lights, Glovebox light 39 TURN 7,5 Emergency flashers, Turn signal lights 40 RAD NO.2 7,5 Audio System 41 CIG 15 Cigarette lighter, Clock, SRS 42 DEF 40 Rear window defogger, Outside rear view mirror defogger 43 PWR 30 Power window, Electronic moon roof, Power seat system 44 AM1 40 No circuit * SPARE   Spare fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
