Buick LeSabre (1994) – fuse box diagram
Year of production: 1994
Fuses

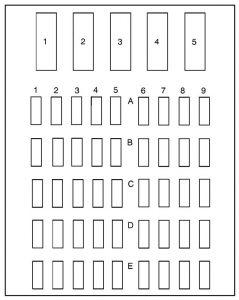

The fuse panel is located under the instrument panel, next to the parking brake.
| Fuses | Ampere rating [A] | Usage |
| 1 | 30 | BRKR – Power Window |
| 2 | Not Used | |
| 3 | 25 | BRKR-Power Seats |
| 4 | Not Used | |
| 5 | Not Used | |
| 1A | 10 | SIR DEMCrank |
| 1B | 20 | Signal/Cornering/Back-up Lamps |
| 1C | 10 | SIR |
| 1D | 15 | Cluster/Telltale/Chime |
| 1E | Not Used | |
| 2A | 10 | Spare |
| 2B | 15 | Spare |
| 2C | 20 | Spare |
| 2D | 25 | Spare |
| 2E | Not Used | |
| 3A | Not Used | |
| 3B | Not Used | |
| 3C | Not Used | |
| 3D | Not Used | |
| 3E | Not Used | |
| 4A | 10 | Interior Illumination |
| 4B | Not Used | |
| 4C | Not Used | |
| 4D | Not Used | |
| 4E | Not Used | |
| 5A | 10 | Uplevel HVAC/OiI LeveVLow Coolant |
| 5B | 10 | ABS |
| 5C | 10 | Transmission/Cooling Fans |
| 5D | 25 | Base HVAC |
| 5E | Not Used | |
| 6A | 15 | Courtesy LampsPower Mirrors |
| 6B | 20 | Brake & Hazard Lamps |
| 6C | 15 | Park Lamps |
| 6D | Not Used | |
| 6E | Not Used | |
| 7A | Not Used | |
| 7B | Not Used | |
| 7C | Not Used | |
| 7D | Not Used | |
| 7E | Not Used | |
| 8A | Not Used | |
| 8B | Not Used | |
| 8C | Not Used | |
| 8D | 10 | Radio |
| 8E | 25 | Wiper/washer |
| 9A | 15 | Ash Tray/Cigar Lighter |
| 9B | 20 | Electronic Level Control |
| 9C | 10 | Radio/Ipnition |
| 9D | Not Used | |
| 9E | 30 | Rear Window Defog |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
