How To Clean Your Vehicle Throttle Body - Step-by-Step Guideline

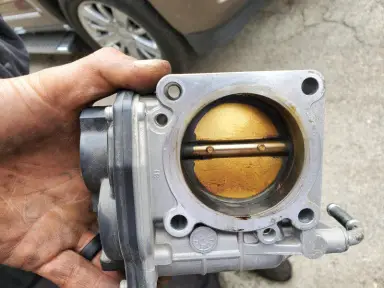

The vehicle's throttle valve plays a pivotal role in controlling the intake of air into the engine's combustion chambers, ensuring an optimal fuel-air mixture. When the accelerator pedal is engaged, the throttle valve opens, allowing an increased fuel influx to the engine.

The throttle valve's operation is closely intertwined with the balance of the air-fuel mixture. In diesel engines, while the air intake is unregulated, its harmonization with the fuel quantity is paramount.

Over time and regular use, the throttle valve can accumulate dirt and contaminants that enter alongside the air. This accumulation can compromise the throttle body's efficacy and hinder its performance. When the throttle valve is significantly obstructed, the vehicle manifests distinct indications. Common symptoms of a compromised throttle body are:

• Irregular engine idle;
• Delays or hesitations upon accelerator engagement;
• Diminished acceleration response;
• Elevated fuel consumption and reduced vehicular power.

If these symptoms are consistent and the throttle valve hasn't been serviced recently, maintenance is likely required.

What Do You Need To Clean Your Vehicle's Throttle Body

To facilitate this cleaning process, the following tools and solutions are recommended:

• Throttle body cleaner or the alternative, Throttle Body and Air Intake Cleaner;
• Carburetor cleaner for additional cleansing;
• A precise cleaning brush;
• Absorbent rag(s);
• A standard screwdriver.

It is advised by automotive professionals to service the throttle valve approximately every 75,000 miles (121,000 km). Although there isn't a strict maintenance schedule, regular cleaning can significantly enhance the vehicle's performance. If any irregularities are observed, it could be indicative of the need for throttle valve cleaning.

Regarding the cleaning procedure, there are two primary methodologies. This guide will emphasize the method which doesn't necessitate the removal of the throttle from the vehicle. This approach is equally effective but is more straightforward and reduces manual labor. Nevertheless, if the throttle valve displays significant contamination, a complete disassembly and cleaning might be the most appropriate course of action."

Initiate by disconnecting the negative battery terminal.

Start by detaching the negative terminal from the battery. This essential step ensures the vehicle is in a non-active state, preventing electrical mishaps.

Remove the air conduit from the throttle body

Proceed by disconnecting the air conduit which links the air filter to the throttle. It's predominantly held in place with a clamp, but alternate mechanisms might be in place. Ensure it's fully disconnected prior to removal.

Disconnect the various connections from the throttle

Several conduits and wires are intertwined around the throttle valve. These include essential sensors, and some tubes through which coolant circulates. Upon disconnection, ensure the tubes are oriented vertically and secured with a plug to avoid any fluid discharge.

Label all the disconnected components

Post-cleaning, it will be imperative to reinstate all components to their original position. Given the multitude of wires and connections, it's advised to label each detachment clearly. This facilitates a streamlined reassembly process without confusion.

Administer throttle cleaner to the designated area

Apply a suitable amount of throttle cleaner over the throttle body. Allow the solution to settle for a moment. If substantial contaminants persist, a duration of 3-5 minutes is recommended for effective cleaning.

Manually clean the vehicle's throttle body

Commence the cleaning procedure using a brush of moderate stiffness, a cloth, or a cotton swab for precision cleaning.

Should the initial cleaning not yield optimal results, reapplication of the cleaner is permissible. The objective is a thoroughly cleansed throttle valve devoid of any residual contamination.

Conclude by reassembling the system

Once the cleaning process is satisfactorily completed, reassemble the entire configuration. Subsequent to reassembly, a comprehensive check is advised to ensure the system's functionality and to confirm the absence of anomalies or disruptive noises.

How to refine your vehicle's throttle body mechanism

In contemporary vehicles where the throttle operation is electronically regulated (actuated by an electronic signal rather than a manual cable), a specific throttle position sensor meticulously monitors the position of the throttle blade. Prior to ignition, this blade is precisely aligned at a 90-degree angle.

It's carefully positioned against the chamber's boundaries, ensuring that no additional air infiltrates. However, with time, dirt accumulates on the walls of the air channel or the blade itself. This accumulation prevents the throttle from achieving a complete seal, causing it to remain partially open.

The sensor registers this altered position, and the vehicle's internal computer system identifies this as the new reference point.

To clarify, the throttle blade's adjusted position, inclusive of its dirt layer, is now considered the default by the vehicle's computational system. While this might seem counterintuitive, it's an intentional design to maintain engine efficiency.

Nevertheless, post the process of meticulously cleaning the throttle body and restoring its pristine condition, the vehicle's computational system is not automatically updated.

It remains unaware of the throttle blade's full sealing potential. Hence, the system continues to operate under the assumption of an existing dirt layer, keeping the blade in its remembered stance.

This misalignment results in a minimal gap between the throttle's boundaries and the blade, sufficient to allow a minor amount of air to seep through.

Consequently, the vehicle's system operates under the presumption of constant throttle engagement, leading to an influx of air into the engine cylinders.

Such an inconsistency has ramifications on the engine's performance. The engine perpetually experiences strain, evident during idle periods where the expected 800 rpm surges to an unexpected 1500–2000 rpm. Such undue stress can induce engine overheating and curtail its longevity.

Thus, post-cleaning, it's imperative to recalibrate the throttle blade to its original factory position.

The procedure for throttle valve adaptation remains consistent across multiple vehicle models:

Initiate by elevating the engine to its optimal operational temperature, subsequently turning it off and pausing for a brief 5-10 seconds. Engage the ignition, waiting an additional 3 seconds. Following this, methodically depress the throttle pedal five times within a 5-second interval before releasing.

Should this process prove ineffective, it's advisable to consult your vehicle's user manual, as the adaptation protocol might vary.

In conclusion

Ensuring the cleanliness of your vehicle's throttle body is of paramount importance. It prevents unnecessary dirt accumulation, ensuring optimal fit and function. Undertaking this cleaning procedure mandates both patience and precision to guarantee optimal outcomes.
