Toyota Camry Hybrid (from 2012) – fuse box diagram

Year of production: 2012, 2013, 2014, 2015, 2016

Engine compartment

Fuse block

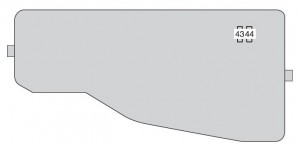

Fuse box cover

Fuse		Ampere rating [A]	Circuit
1	METER-IG2	5	Gauge and meters
2	FAN	50	Electric cooling fans
3	H-LP CLN	30	No circuit
4	ENG W/PMP	30	Multiport fuel injection system/sequential multiport fuel injection system
5	PTC HTR NO.2	50	PTC heater
6	PTC HTR NO.1	50	PTC heater
7	HTR	50	Air conditioning system
8	DC/DC	120	Hybrid system
9	ABS NO.1	30	Electronically controlled brake system
10	H-LP-MAIN	30	H-LP LH-LO, H-LP RH-LO, MNL HLP LVL, headlight (low beam)
11	ABS MTR NO.2	50	Electronically controlled brake system
12	ABS MTR NO.1	50	Electronically controlled brake system
13	R/B NO.2	50	IGCT-MAIN, INV W/PMP
14	EPS	80	Electric power steering
15	S-HORN	7,5	S-HORN
16	DEICER	15	No circuit
17	HORN	10	Horns
18	EFI NO.2	15	Multiport fuel injection system/sequential multiport fuel injection system
19	EFI NO.3	7,5	Multiport fuel injection system/sequential multiport fuel injection system
20	INJ	7,5	Multiport fuel injection system/sequential multiport fuel injection system
21	ECU-IG2 NO.3	7,5	Multiport fuel injection system/sequential multiport fuel injection system, steering lock system, hybrid system
22	IGN	15	Starter system
23	D/L-AM2	20	No circuit
24	IG2-MAIN	7,5	IGN, INJ, METER-IG2, ECU-IG2 NO.3, A/B, ECU-IG2 NO.2, ECUIG2 NO.1
25	DC/DC-S	7,5	Hybrid system
26	MAYDAY	5	MAYDAY
27	TURN&HAZ	15	Turn signal lights, emergency flashers, gauge and meters
28	STRG LOCK	10	Steering lock system
29	AMP	15	Audio system
30	H-LP LH-LO	15 A*1	Left-hand headlight (low beam)
		20 A*2
31	H-LP RH-LO	15 A*1	Right-hand headlight (low beam)
		20 A*2
32	MNL H-LP LVL*2	7,5	Manual headlight leveling system
33	EFI-MAIN NO.1	30	Multiport fuel injection system/sequential multiport fuel injection system, EFI NO.2, EFI NO.3
34	SMART	5	Smart key system
35	ETCS	10	Electronic throttle control system
36	ABS NO.2	7,5	Electronically controlled brake system
37	EFI NO.1	7,5	Multiport fuel injection system/sequential multiport fuel injection system
38	EFI-MAIN NO.2	20	A/F sensor
39	AM2	7,5	Hybrid system
40	RADIO-B	20	Audio system, navigation system
41	DOME	7,5	Clock, vanity lights, interior lights, personal lights, trunk light, door courtesy lights
42	ECU-B NO.1	10	Smart key system, gauge and meters, Blind Spot Monitor, steering sensor, occupant classification system, multiplex communication system
43	SPARE	25	Spare fuse
44	SPARE	30	Spare fuse
*1: Vehicles with halogen headlight *2: Vehicles with discharge headlight

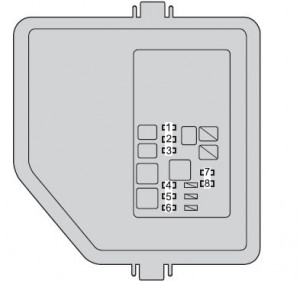

Engine compartment (type B fuse box)



Fuse		Ampere rating [A]	Circuit
1	PM IGCT	7,5	Hybrid system, electronic controlled transmission
2	BATT VL SSR	10	Hybrid system
3	INV	7,5	Hybrid system
4	DC/DC IGCT	10	Hybrid system
5	INV W/PMP RLY	7,5	Hybrid system
6	BATT FAN	7,5	Battery cooling fan
7	INV W/PMP	15	Hybrid system
9	IGCT-MAIN	25	DC/DC IGCT, INV, BATT VL SSR, PM IGCT, INV W/PMP RLY, BATT FAN

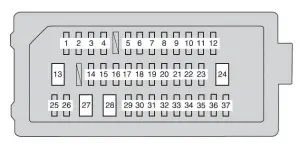

Under the instrument panel

Fuse		Ampere rating [A]	Circuit
1	ECU-IG1 NO.2	10	Shift lock control system, seat heaters, smart key system, tire pressure warning system, multiplex communication system, audio system, navigation system, moon roof, auto anti-glare inside rear view mirror, air conditioning system
2	ECU-IG1 NO.1	10	Electronically controlled brake system, electric cooling fans, stop lights, steering sensor, Vehicle Proximity Notification System, rear window defogger, outside rear view mirror defogger, back-up lights, audio system, navigation system
3	PANEL	10	Switch illumination, air conditioning system, shift lever light, glove box light, audio system, navigation system, personal lights, interior lights
4	TAIL	15	Parking lights, side marker lights, tail lights, license plate lights, fog lights
5	EPS-IG1	7,5	Electric power steering
6	ECU-IG1 NO.3	7,5	Blind Spot Monitor
7	S/HTR&FAN F/L	10	Seat heaters
8	H-LP LVL	7,5	No circuit
9	WASHER	10	Windshield wipers and washer
10	A/C-IG1	7,5	Air conditioning system, PTC heater
11	WIPER	25	Windshield wipers and washer
12	BKUP LP	7,5	No circuit
13	DOOR NO.1	30	Power windows
14	WIPER-S	5	No circuit
15	P/OUTLET RR	20	Power outlet
16	SFT LOCKACC	5	No circuit
17	DOOR R/R	20	Rear right-hand power windows
18	DOOR R/L	20	Rear left-hand power windows
19	OBD	10	On-board diagnosis system
20	ECU-B NO.2	10	Smart key system, tire pressure warning system
21	DOOR NO.2	20	Power windows
22	AM1	7,5	No circuit
23	STOP	7,5	Tail lights, electronically controlled brake system, high mounted stoplight, shift lock control system, hybrid system, Vehicle Proximity Notification System
24	P/SEAT RR	30	No circuit
25	A/C-B	7,5	Air conditioning system
26	S/ROOF	10	Moon roof
27	P/SEAT FR	30	Power seats
28	PSB	30	No circuit
29	D/L-AM1	20	Multiplex communication system, power door lock, trunk opener switch
30	TI&TE	20	No circuit
31	A/B	10	Occupant classification system, SRS airbag system
32	ECU-IG2 NO.1	7,5	Hybrid system
33	ECU-IG2 NO.2	7,5	Electronically controlled brake system, smart key system
34	CIG&P/OUTLET	15	Power outlet
35	ECU-ACC	7,5	Clock, outside rear view mirrors, multiplex communication system, audio system, navigation system
36	S/HTR&FAN F/ R	10	Seat heaters
37	S/HTR RR	20	No circuit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
