Hyundai Veloster (2012 – 2014) – fuse box diagram
Year of production: 2012, 2013, 2014
Instrument panel?

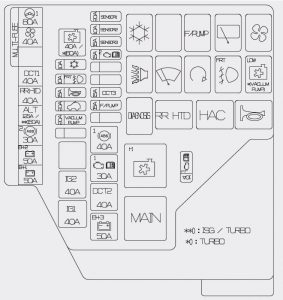

Engine compartment fuse panel

Fuse | Ampere rating [A] | Fuse name | Symbol | Circuit protected |
MULTI FUSE | 80 | MDPS | ![]() |
EPS Control Module |
40 | BLOWER | ![]() |
Blower Motor | |
40 | DCT1 | ![]() |
TCM (G4FD-DCT) | |
40 | RR HTD | ![]() |
E/R Fuse & Relay Box (RLY. 15) | |
125 (W/O ISG) | ALT | ![]() |
E/R Fuse & Relay Box (Multi Fuse), Alternator | |
150 (With ISG) | ||||
30 | ABS2 | ![]() |
Multipurpose Check Connector, ESP Control Module | |
50 | B+2 | ![]() |
Smart Junction Box(Power Window Relay, ARISU-LT, FUSE – F34, F23) | |
50 | B+1 | ![]() |
Leak Current Autocut Device (Leak Current Autocut Relay, Leak Current Autocut Switch, FUSE – F25, F12, F16), FUSE-F20, F39, F29 | |
FUSE | 40 – GDI/MPI | C/FAN | ![]() |
E/R Fuse & Relay Box (RLY. 1, RLY. 4) |
60 – T-GDI | ||||
10 | A/CON | ![]() |
E/R Fuse & Relay Box (RLY. 11) | |
10 | FOG LP FRT | ![]() |
E/R Fuse & Relay Box (RLY. 6) | |
15 | HORN | ![]() |
E/R Fuse & Relay Box (RLY. 12, RLY. 13) | |
20 | SUNROOF | ![]() |
Panorama Sunroof Motor | |
40 | IG2 | ![]() |
Ignition Switch, PDM Relay Box (IG 2 Relay), E/R Fuse & Relay Box (RLY. 8) | |
40 | IG1 | ![]() |
Ignition Switch, PDM Relay Box (IG 1 Relay, ACC Relay) | |
20 | SENSOR1 | ![]() |
ECM | |
10 | SENSOR2 | ![]() MPI |
Oil Control Valve #1/#2, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Engine Room Fuse & Relay Box (RLY. 11) | |
![]() |
Oil Control Valve #1/#2, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Engine Room Fuse & Relay Box (RLY. 11), Waste Gate Valve, Recirulation Valve | |||
15 | SENSOR3 | ![]() |
Camshaft Position Sensor (EX)/(IN)(G4FC), Injector #1/#2/#3/#4(G4FC), Oxygen Sensor (UP)/(DOWN), E/R Fuse & Relay Box (RLY. 14) | |
15 | ECU2 | ![]() |
TCM (G4FC), ECM (G4FD) | |
15 | DCT3 | ![]() |
TCM (G4FD-DCT) | |
15 | F/PUMP | ![]() |
E/R Fuse & Relay Box (RLY. 7) | |
40 | ABS1 | ![]() |
ESP Control Module | |
30 | ECU1 | ![]() |
Engine Room Fuse & Relay Box (RLY. 2, FUSE – F23, F33) | |
40 | DCT2 | ![]() |
TCM (G4FD-DCT) | |
50 | B+3 | ![]() |
Smart Junction Box (Tail Lamp Relay, Fuse – F21, F15, F19, F24, F26, ARISU-RT) | |
10 | ECU3 | ![]() |
Sport Mode Switch | |
20 | VACUUM PUMP |
![]() |
Engine Room Fuse & Relay Box (VACCUM PUMP RELAY) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
