Ford Taurus (from 2015) – fuse box diagram

Year of production: 2015, 2016

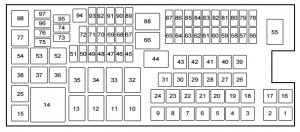

Power distribution box

Fuse or relay number	Ampere rating [A]	Protected components
1	—	Not used
2	—	Not used
3	—	Not used
4	30**	Wiper motor relay
5	50**	Anti-lock brake system pump
6	—	Not used
7	—	Not used
8	20**	Moonroof, Power sunshade
9	20**	Second row powerpoint
10	—	Not used
11	—	Heated rear window relay
12	—	Not used
13	—	Starter motor high-current relay
14	—	Left-hand cooling fan #2 relay
15	—	Fuel pump ultra relay
16	—	Not used
17	—	Not used
18	40**	Front blower motor relay
19	30**	Starter relay
20	20**	Storage bin powerpoint
21	20**	Rear heated seat module
22	—	Massage control seats relay
23	30**	Driver power seat, Memory module
24	—	Not used
25	—	Not used
26	40**	Rear window defrost relay
27	20**	Cigar lighter
28	30**	Climate controlled seats
29	40**	Electric fan relay 1
30	40**	Electric fan relay 2
31	25**	Electric fan relay 3
32	—	Power seat relay
33	—	Right-hand cooling fan relay
34	—	Blower motor high-current relay
35	—	Left-hand cooling fan #1 relay
36	—	Not used
37	—	Not used
38	—	Not used
39	—	Not used
40	—	Not used
41	—	Not used
42	30**	Passenger power seat
43	20**	Anti-lock brake system valves
44	—	Not used
45	5	Rain sensor
46	—	Not used
47	—	Not used
48	—	Not used
49	—	Not used
50	15*	Heated mirrors
51	—	Not used
52	—	Not used
53	—	Not used
54	—	Not used
55	—	Wiper relay
56	—	Not used
57	20*	Left high-intensity discharge headlamp
58	10*	Alternator A-line
59	10*	Brake on/off switch
60	—	Not used
61	—	Not used
62	10*	A/C clutch relay
63	—	Not used
64	15*	Massage control seats
65	30*	Fuel pump relay, Fuel injectors
66	—	Powertrain control module relay
67	20*	Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid valve, Canister vent solenoid, Canister purge solenoid
68	20*	Ignition coils
69	20*	Vehicle power #1 (powertrain control module)
70	15*	A/C clutch, Fan control relay coils (1-3), Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve, All-wheel drive module, Positive crankcase ventilation heater
71	—	Not used
72	—	Not used
73	—	Not used
74	—	Not used
75	—	Not used
76	—	Not used
77	—	Not used
78	20*	Right high-intensity discharge headlamp
79	—	Not used
80	—	Not used
81	—	Not used
82	—	Not used
83	—	Not used
84	—	Not used
85	—	Not used
86	7,5*	Powertrain control module keep-alive power and relay, Canister vent solenoid
87	5*	Run/start relay
88	—	Run/start relay
89	5*	Front blower relay coil, Electrical power assist steering module
90	10*	Powertrain control module run/start
91	10*	Adaptive cruise control module
92	10*	Anti-lock brake system module, Adaptive headlamp module
93	5*	Rear window defroster relay
94	30**	Passenger compartment fuse panel run/start
95	—	Not used
96	—	Not used
97	—	Not used
98	—	A/C clutch relay
*Mini Fuses**Cartridge Fuses

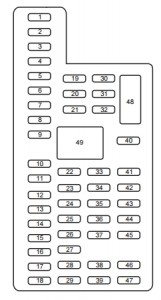

Passenger compartment fuse panel

The fuse panel is located under the instrument panel to the left of the steering wheel. You may need to remove a trim panel to access it.

Fuse or relay number	Ampere rating [A]	Protected components
1	30	Left front and right rear smart window motors
2	15	Driver seat switch power
3	30	Right front smart window motor
4	10	Demand lamps battery saver relay and coil
5	20	Audio amplifiers
6	5	Not used (spare)
7	7,5	Driver seat module logic, Left front door zone module, Keypad
8	10	Not used (spare)
9	10	SYNC module, Multi-function displays, Electronic finish panel, Radio frequency transceiver module
10	10	Run accessory relay
11	10	Intelligent access module logic, Heads-up display
12	15	Puddle lamp, Backlighting LED, Interior lighting
13	15	Right front turn, Right rear turn
14	15	Left front turn, Left rear turn
15	15	Stop lamp, Backup lamp
16	10	Right front low beam
17	10	Left front low beam
18	10	Start button, Keypad illumination, Brake shift interlock, Powertrain control module wakeup, Immobilizer transceiver module
19	20	Audio amplifier
20	20	All lock motor relay, Driver lock motor relay
21	10	Not used (spare)
22	20	Horn relay
23	15	Steering wheel control module logic, Instrument cluster
24	15	Steering wheel control module, Datalink
25	15	Decklid release relay
26	5	Ignition switch or push button start switch
27	20	Intelligent access module power
28	15	Not used (spare)
29	20	Radio, Global positioning system module
30	15	Front park lamps
31	5	Not used (spare)
32	15	Smart window motors, Master window and mirror switch, Rear window power sunshade module, Lock switch illumination
33	10	Not used (spare)
34	10	Reverse park aid module, Automatic high beam and lane departure module, Rear heated seat module, Blind spot monitor module, Rear video camera
35	5	Motorized humidity sensor, Heads-up display, Traction control switch
36	10	Heated steering wheel
37	10	Not used (spare)
38	10	Auto–dimming mirror (without automatic high beam and lane departure module), Moonroof module and switch
39	15	High beams
40	10	Rear park lamps
41	7,5	Occupant classification sensor, Restraint control module
42	5	Not used (spare)
43	10	Not used (spare)
44	10	Not used (spare)
45	5	Not used (spare)
46	10	Climate control module
47	15	Fog lamp relay
48	30A Circuit Breaker	Front passenger power window, Rear power windows

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
