Lincoln MKX (2011 – 2015) – fuse box diagram
Year of production: 2011, 2012, 2013, 2014, 2015

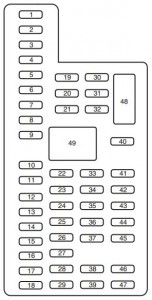

Passenger compartment fuse panel
The fuse panel is located behind a trim panel on the left side of the driver’s footwell near the parking brake.
| No. | A | Protected components |
| 1 | 30 | Driver front smart window |
| 2 | 15 | Not used (spare) |
| 3 | 30 | Passenger front smart window |
| 4 | 10 | Demand lamps |
| 5 | 20 | Subwoofer |
| 6 | 5 | Radio frequency module |
| 7 | 7.5 | Power mirror switch, Memory seat switch, Driver seat module |
| 8 | 10 | Not used (spare) |
| 9 | 10 | Power liftgate |
| 10 | 10 | Run/accessory relay |
| 11 | 10 | Instrument panel cluster, Heads-up display |
| 12 | 15 | Interior lighting, Puddle lamps, Backlighting |
| 13 | 15 | Right turn/stop lamps and turn signals |
| 14 | 15 | Left turn/stop lamps and turn signals |
| 15 | 15 | Reverse lamps, Stop lamps (high-mounted) |
| 16 | 10 | Low beam headlamps (right) |
| 17 | 10 | Low beam headlamps (left) |
| 18 | 10 | Keypad illumination, Brake shift interlock (BSI), Passenger compartment fuse panel, Start button LED, Passive anti-theft system (PATS), Powertrain control module (PCM) wake-up, 2nd row power enable |
| 19 | 20 | Audio amplifier |
| 20 | 20 | Lock/unlock relays – vehicles without intelligent access (IA) |
| 21 | 10 | Not used (spare) |
| 22 | 20 | Horn relay |
| 23 | 15 | Steering wheel control, Intelligent access (IA), Headlamp switch |
| 24 | 15 | Power tilt/telescope steering column, On-board diagnostics (OBDII) |
| 25 | 15 | Liftgate release |
| 26 | 5 | Global positioning system (GPS) module |
| 27 | 20 | Intelligent access (IA) |
| 28 | 15 | Ignition switch (without intelligent access), Key inhibit solenoid, Push button start (with intelligent access) |
| 29 | 20 | Radio, Electronic finish panel, SYNC® module |
| 30 | 15 | Front park lamps |
| 31 | 5 | Not used (spare) |
| 32 | 15 | Moon roof, Power windows, Compass/auto-dinrming rear view mirror |
| 33 | 10 | Not used (spare) |
| 34 | 10 | Reverse sensing system, Rearview camera, Blind spot monitor, Rear heated seat module |
| 35 | 5 | Heads-up display |
| 36 | 10 | Heated steering wheel |
| 37 | 10 | Climate control |
| 38 | 10 | Not used (spare) |
| 39 | 15 | High beam headlamps |
| 40 | 10 | Rear park lamps, License plate lamps |
| 41 | 7.5 | Occupant classification sensor (OCS), Restraints control module |
| 42 | 5 | Not used (spare) |
| 43 | 10 | Not used (spare) |
| 44 | 10 | Not used (spare) |
| 45 | 5 | Not used (spare) |
| 46 | 10 | Climate control |
| 47 | 15 | Fog lamps, LED signal mirrors |
| 48 | 30 | Circuit Breaker: Power windows (Rear power windows) |
| Relay | ||
| 49 | Delayed accessory | |

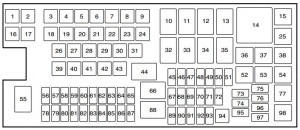

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment.
| No. | A | Protected components |
| 1 | — | Not used |
| 2 | — | Not used |
| 3 | — | Not used |
| 4 | 30 | Wipers |
| 5 | 40 | Anti-lock brake system (ABS) pump |
| 6 | — | Not used |
| 7 | 30 | Power liftgate |
| 8 | 20 | Moon roof |
| 9 | 20 | Power point #2 (console rear) |
| 16 | — | Not used |
| 17 | — | Not used |
| 18 | 40 | Blower motor |
| 19 | 30 | Starter motor |
| 20 | 20 | Power point #1 (console bin) |
| 21 | 20 | Cargo area power point |
| 22 | — | Not used |
| 23 | 30 | Driver seat module |
| 24 | — | Not used |
| 25 | — | Not used |
| 26 | 40 | Rear window defroster |
| 27 | 20 | Front power point/lighter |
| 28 | 30 | Climate controlled seats |
| 29 | — | Not used |
| 30 | 30 | Rear heated seats |
| 31 | — | Not used |
| 39 | 40 | Cooling fan (vehicles with trailer tow) |
| 60 | Cooling fan (vehicles without trailer tow) | |
| 40 | 40 | Cooling fan (trailer tow only) |
| 41 | — | Not used |
| 42 | 30 | Passenger seat |
| 43 | 30 | ’11: Anti-lock brake system valves |
| 25 | ’12-’15: Anti-lock brake system valves | |
| 45 | 5 | Rain sensor |
| 46 | — | Not used |
| 47 | — | Not used |
| 48 | — | Not used |
| 49 | — | Not used |
| 50 | 15 | Heated mirror |
| 51 | — | Not used |
| 56 | — | Not used |
| 57 | 20 | Left high-intensity discharge (HID) headlamps |
| 58 | 10 | Alternator sensor |
| 59 | 10 | Brake on/off switch |
| 60 | — | Not used |
| 61 | 10 | Rear seat release |
| 62 | 10 | A/C clutch |
| 63 | 15 | Trailer tow stop/turn lamps relay |
| 64 | 20 | Rear wiper motor |
| 65 | 15 | Fuel pump |
| 67 | 20 | Vehicle power (VPWR) #2 |
| 68 | 15 | VPWR #4 |
| 69 | 15 | VPWR #1 |
| 70 | 10 | A/C relay, All-wheel drive module |
| 71 | — | Not used |
| 72 | — | Not used |
| 73 | — | Not used |
| 74 | — | Not used |
| 76 | — | Not used |
| 78 | 20 | Right high-intensity discharge (HID) headlamps |
| 79 | 5 | Adaptive cruise control |
| 80 | — | Not used |
| 81 | — | Not used |
| 82 | 15 | Rear washer |
| 83 | — | Not used |
| 84 | 20 | Trailer tow park lamps |
| 85 | — | Not used |
| 86 | 7.5 | PCM keep-alive, PCM relay |
| 87 | 5 | Run/start relay |
| 89 | 5 | Adaptive lighting |
| 90 | 10 | PCM |
| 91 | 10 | Adaptive cruise control |
| 92 | 10 | ABS module |
| 93 | 5 | Blower motor/rear defroster relay |
| 94 | 30 | Passenger compartment fuse panel run/start |
| 95 | — | Not used |
| 96 | — | Not used |
| 97 | — | Not used |
| Diode | ||
| 75 | A/C clutch | |
| Relay | ||
| 10 | Not used | |
| 11 | Rear window defroster/heated mirror | |
| 12 | Not used | |
| 13 | Starter | |
| 14 | Not used | |
| 15 | Fuel pump | |
| 32 | Not used | |
| 33 | Not used | |
| 34 | Blower motor | |
| 35 | Not used | |
| 36 | Rear seat | |
| 37 | Right trailer tow stop/turn lamps relay | |
| 38 | Not used | |
| 44 | Rear washer | |
| 52 | Not used | |
| 53 | Left trailer tow stop/turn lamps | |
| 54 | Not used | |
| 55 | Wiper | |
| 66 | Powertrain control module (PCM) | |
| 77 | Trailer tow park lamps | |
| 88 | Run/start | |
| 98 | A/C clutch | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
