Lexus HS250h (2012) – fuse box diagram

Year of production: 2012

Engine compartment

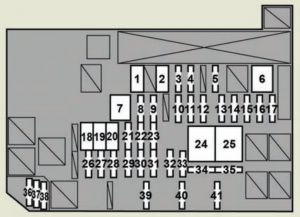

Lexus HS250h - fuse box - engine compartment
Lexus HS250h – fuse box –
engine compartment
Fuse Ampere rating [A] Circuit protected
1 HTR 50 Air conditioning system
2 RDI 40 Electric cooling fans
3 OIL PMP 10 Hybrid system, transmission
4 S-HORN 10 No circuit
5 ABS MAIN NO.2 7,5 Electronically controlled brake system
6 H-LP CLN 30 Headlight cleaner
7 P-CON MTR 30 P position control system, hybrid system, smart access system with pushbutton start
8 AMP NO.1 30 Audio system, back door opener
9 IGCT 30 PCU, IGCT NO.2, IGCT NO.3, hybrid system
10 P CON MAIN 7,5 P position control system, hybrid system, smart access system with pushbutton start
11 AM2 7,5 Smart access system with push-button start, hybrid system, multiport fuel injection system/sequential multiport fuel injection system, P position control system, cruise control system, dynamic radar cruise control system
12 ECU-B2 7,5 Smart access system with push-button start, multiport fuel injection system/sequential multiport fuel injection system, trunk opener switch
13 MAYDAY 10 Lexus link system
14 ECU-B3 10 Air conditioning system, rear window defogger, mirror heater
15 TURN & HAZ 10 Turn signal lights, emergency flashers
16 ETCS 10 Multiport fuel injection system/sequential multiport fuel injection system
17 ABS MAIN NO.1 20 Electronically controlled brake system
18 P/I 2 40 P position control system, hybrid system, transmission, smart access system with push-button start, horn, headlights (low beam), back-up lights
19 ABS MTR 1 30 Electronically controlled brake system
20 ABS MTR 2 30 Electronically controlled brake system
21 H-LP HI MAIN 20 Headlights (high beam)
22 AMP NO.2 30 Audio system, navigation system
23 DOOR NO.2 25 No circuit
24 P/I 1 60 IG2, EFI MAIN, BATT FAN
25 EPS 60 Electric power steering system
26 PCU 10 Hybrid system
27 IGCT NO.2 10 Smart access system with push-button start, hybrid system, P position control system, multiport fuel injection system/sequential multiport fuel injection system
28 MIR HTR 10 Rear window defogger, mirror heater
29 RAD NO.1 15 Audio system, navigation system
30 DOME 10 Interior lights, antiglare inside rear view mirror, audio system, navigation system, garage door opener
31 ECU-B 7,5 Smart access system with push-button start, air conditioning system, gauges and meters, outside rear view mirror, clock, seats position memory, electric tilt & telescopic steering wheel
32 H-LP LH HI 10 Left-hand headlight (high beam)
33 H-LP RH HI 10 Right-hand headlight (high beam)
34 EFI NO. 2 10 Multiport fuel injection system/sequential multiport fuel injection system
35 IGCT NO.3 10 Hybrid system
36 SPARE 30 Spare fuse
37 SPARE 10 Spare fuse
38 SPARE 7,5 Spare fuse
39 EFI MAIN 20 EFI NO.2, fuel system
40 BATT FAN 10 Battery cooling fan
41 IG2 20 Hybrid system, multiport fuel injection system/sequential multiport fuel injection system, MET, IGN

Driver’s side instrument panel

Lexus HS250h - fuse box - driver's side instrument panel` class=`size-medium wp-image-13447` height=`121` loading=`lazy` sizes=`(max-width: 300px) 100vw, 300px` src=`/uploads/07a/5aa/619/07a5aa61975721381d5b0b3b52d6b4ea.jpg` srcset=`/uploads/07a/5aa/619/07a5aa61975721381d5b0b3b52d6b4ea.jpg 300w, 768w, 978w` width=`300` /> <figcaption class=`wp-caption-text` id=`caption-attachment-13447`>Lexus HS250h – fuse box –<br /> driver’s side instrument panel</figcaption> </figure> <table class=`table table-hover table-bordered`> <tbody> <tr> <td colspan=`2Fuse Ampere rating [A] Circuit protected 1 TAIL 10 Parking lights, tail lights, license plate lights, side maker lights, front fog lights 2 PANEL 10 Navigation system, audio system, air conditioning system, emergency flashers switch, wiper de-icer switch, seat heater switch, P position switch, headlight cleaner switch, front passenger’s seatbelt reminder light, power window switch, VSC-OFF switch, HUD switch, AFS-OFF switch, POWER ·ECO· EV mode switch, view select switch, trunk opener switch, fuel lid opener switch, glove box light, rear sun shade switch, remote touch, rear view mirror switch 3 IGN 10 Electronically controlled brake system, multiport fuel injection system/sequential multiport fuel injection system, Lexus link system, smart access system with push-button start, stop lights 4 MET 7,5 Meters 5 WIP 30 Windshield wipers 6 WASHER 15 Windshield washer 7 A/C 10 Air conditioning system 8 GAUGE 10 AFS, turn signal lights, emergency flasher lights 9 AFS 10 Adaptive front-lighting system 10 ECU-IG NO.2 10 Pre-collision system, LKA, dynamic radar cruise control, air conditioning system, outside rear view mirror, HUD, navigation system, tire inflation pressure warning system 11 ECU-IG NO.1 10 Rear view mirror, electronically controlled brake system, electric power steering system, moon roof, rain-sensing windshield wiper, emergency flashers switch, air conditioning system, electric head restraints, driver monitor, steering switch, seat heaters/ventilators, electric tilt & telescopic steering wheel, rear sun shead. AFS 12 S/ROOF 30 Electric moon roof 13 DOOR RL 25 Rear power window (left-side) 14 DOOR RR 25 Rear power window (right-side) 15 SHADE RR 10 Rear sun shade 16 D FR DOOR 25 Driver’s side power window, outside rear view mirror 17 P FR DOOR 25 Passenger’s side power window, outside rear view mirror 18 TI & TE 30 Electric tilt & telescopic steering wheel 19 STOP 10 Stop lights, electronically controlled brake system 20 A/C NO.2 10 No circuit 21 RR FOG 7,5 No circuit 22 FUEL OPN 7,5 Trunk opener switch, fuel filler door opener switch 23 OBD 7,5 On-board diagnosis 24 PWR SEAT FL 30 Driver’s side power seat 25 FR FOG 15 Front fog lights 26 PWR SEAT FR 30 Passenger’s side power seat 27 PSB 30 Pre-collision seat belts system 28 WELCAB 30 No circuit 29 DOOR NO.1 25 Power door lock system 30 SEAT HTR FL 10 Driver’s side seat heater 31 SEAT HTR FR 10 Passenger’s side seat heater 32 RAD NO.2 7,5 Navigation system, audio system, air conditioning system, HUD, remote touch 33 PWR OUTLET 15 Power outlet 34 ECU-ACC 10 Rear view mirror, air conditioning system, audio system, navigation system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
