Toyota Land Cruiser (2008 – 2009) – fuse box diagram

Year of production: 2008, 2009

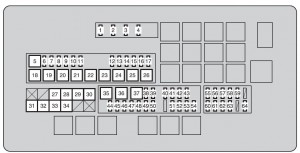

Engine compartment



Toyota Land Cruiser - fuse box - engine compartment
Toyota Land Cruiser – fuse box – engine compartment
Fuse Ampere rating [A] Circuit
1 A/F 15 A/F heater
2 HORN 10 Horn
3 EFI MAIN 25 EFI, A/F heater
4 IG2 MAIN 30 Injector, ignition, meter
5 RR A/C 50 No circuit
6 SEAT-A/C LH 25 No circuit
7 RR S/HTR 20 Rear seat heater
8 DEICER 20 Windshield wiper de-icer
9 CDS FAN 25 Condenser fan
10 TOW TAIL 30 Towing tail
11 RR P/SEAT 30 No circuit
12 ALT-CDS 10 Alternator condenser
13 FR FOG 15 Front fog lights
14 SECURITY 5 Security horn
15 SEAT-A/C RH 25 No circuit
16 STOP 15 Stoplights, high mounted stoplight, brake controller, towing converter, ABS, VSC, main body ECU, EFI
17 TOW BRK 30 Brake controler
18 RR AUTO A/C 50 Rear blower control
19 PTC-1 50 PTC heater
20 PTC-2 50 PTC heater
21 PTC-3 50 PTC heater
22 RH-J/B 40 No circuit
23 SUB BATT 40 Towing
24 VGRS 40 No circuit
25 H-LP CLN 30 Headlight cleaner
26 DEFOG 30 Rear window defogger
27 AHC 60 No circuit
28 HTR 50 Blower controller
29 PBD 30 No circuit
30 LH-J/B 150 Main body ECU
31 ALT 180 No circuit
32 A/PUMP NO.1 50 AI DRIVER
33 A/PUMP NO.2 50 AI DRIVER2
34 MAIN 40 Headlight, daytime running light system
35 ABS1 50 ABS
36 ABS2 50 ABS
37 ST 30 Starter system
38 IMB 7,5 ID code box, smart key system, GBS
39 AM2 5 Main body ECU
40 DOME2 7,5 Vanity lights, overhead module
41 ECU-B2 5 Driving position memory system
42 TEL 5 No circuit
43 RSE 7,5 Rear seat entertainment
44 TOWING 30 Towing
45 DOOR NO.2 25 Main body ECU
46 STR LOCK 20 Steering lock system
47 TURN-HAZ 15 Meter, front turn signal lights, rear turn signal lights, towing converter
48 EFI MAIN2 20 Fuel pump
49 ETCS 10 EFI
50 ALT-S 5 IC-ALT
51 AMP 30 Audio system
52 RAD NO.1 10 Navigation system, radio receiver assembly
53 ECU-B1 5 Smart key system, overhead module, tilt and telescopic steering, meter, cool box, gateway ECU, steering sensor
54 DOME1 5 Door courtesy lights, clock
55 HEAD LH 15 Headlight high beam (left)
56 HEAD LL 15 Headlight low beam (left)
57 INJ 10 Injector, ignition
58 MET 5 Meter
59 IGN 10 Circuit open, SRS airbag system, gateway ECU, occupant detection system, smart key system, ABS, VSC, steering lock system, GBS
60 HEAD RH 15 Headlight high beam (right)
61 HEAD RL 15 Headlight low beam (right)
62 EFI NO.2 7,5 AFM, EVP VSV, 02 SSR, KEY OFF PMP, AI DRIVER, AI EX VSV, ACIS VSV
63 RR A/C NO.2 7,5 No circuit
64 DEF NO.2 5 Outside rear view mirror heater

Driver’s side instrument panel

Toyota Land Cruiser - fuse box - driver' s side instrument panel` class=`size-medium wp-image-8865` height=`103` loading=`lazy` sizes=`(max-width: 300px) 100vw, 300px` src=`/uploads/4b2/c6f/9b7/4b2c6f9b7bfb12eacf0dfd8e1471237e.jpg` srcset=`/uploads/4b2/c6f/9b7/4b2c6f9b7bfb12eacf0dfd8e1471237e.jpg 300w,  768w,  873w` width=`300` />

<figcaption class=`wp-caption-text` id=`caption-attachment-8865`>Toyota Land Cruiser – fuse box – driver’ s side instrument panel</figcaption>
</figure>

<table class=`table table-hover table-bordered`>
	<tbody>
		<tr>
			<td colspan=`2`>Fuse</td>
			<td>Ampere rating [A]</td>
			<td>Circuit</td>
		</tr>
		<tr>
			<td>1</td>
			<td>CIG</td>
			<td>15</td>
			<td>Cigarette lighter</td>
		</tr>
		<tr>
			<td>2</td>
			<td>BK/UP LP</td>
			<td>10</td>
			<td>Back-up lights, trailer</td>
		</tr>
		<tr>
			<td>3</td>
			<td>ACC</td>
			<td>7,5</td>
			<td>Stereo component amplifier assembly, multi-display assembly, gateway ECU, radio receiver assembly, main body ECU, mirror ECU, rear seat entertainment, smart key system, clock</td>
		</tr>
		<tr>
			<td>4</td>
			<td>PANEL</td>
			<td>10</td>
			<td>Four-wheel drive system, ashtray, cigarette lighter, brake controller, cool box, cruise control, center differential lock, DAC, multi-display assembly, seat heater, air conditioning system, glove box light, emergency flasher, radio receiver assembly, headlight cleaner, inverter, driving position memory system, mirror ECU, overhead module, roll sensing of curtain shield airbags off switch, shift lever switch, steering switches, VSC, console switch</td>
		</tr>
		<tr>
			<td>5</td>
			<td>ECU-IG NO.2</td>
			<td>10</td>
			<td>Air conditioning system, heater, overhead module, ABS, VSC, steering sensor, yaw rate & G sensor, main body ECU, stoplights, moon roof, clock, EC mirror</td>
		</tr>
		<tr>
			<td>6</td>
			<td>WINCH</td>
			<td>5</td>
			<td>No circuit</td>
		</tr>
		<tr>
			<td>7</td>
			<td>A/C IG</td>
			<td>10</td>
			<td>Cool box, condenser fan, cooler compressor, MG CL, rear window defogger, RR MGC VLV</td>
		</tr>
		<tr>
			<td>8</td>
			<td>TAIL</td>
			<td>15</td>
			<td>Tail lights, license plate lights, front fog lights, front side marker lights, rear side marker lights, parking lights</td>
		</tr>
		<tr>
			<td>9</td>
			<td>WIPER</td>
			<td>30</td>
			<td>Windshield wiper</td>
		</tr>
		<tr>
			<td>10</td>
			<td>WSH</td>
			<td>20</td>
			<td>Windshield washer</td>
		</tr>
		<tr>
			<td>11</td>
			<td>RR WIPER</td>
			<td>15</td>
			<td>Rear wiper</td>
		</tr>
		<tr>
			<td>12</td>
			<td>4WD</td>
			<td>20</td>
			<td>4WD</td>
		</tr>
		<tr>
			<td>13</td>
			<td>LH-IG</td>
			<td>5</td>
			<td>Alternator, sub battery, seat heater, windshield wiper deicer, seat belt pretensioners, emergency flasher, inverter, shift lever switch</td>
		</tr>
		<tr>
			<td>14</td>
			<td>ECU-IG NO.1</td>
			<td>5</td>
			<td>ABS, VSC, tilt and telescopic steering, gateway ECU, shift lock system, cruise control system, pre-collision seat belt, headlight cleaner, multi-display assembly, driving position memory system, power door lock system</td>
		</tr>
		<tr>
			<td>15</td>
			<td>S/ROOF</td>
			<td>25</td>
			<td>Moon roof</td>
		</tr>
		<tr>
			<td>16</td>
			<td>RR DOOR RH</td>
			<td>20</td>
			<td>Power windows</td>
		</tr>
		<tr>
			<td>17</td>
			<td>MIR</td>
			<td>15</td>
			<td>Mirror ECU, outside rear view mirror heater</td>
		</tr>
		<tr>
			<td>18</td>
			<td>RR DOOR LH</td>
			<td>20</td>
			<td>Power windows</td>
		</tr>
		<tr>
			<td>19</td>
			<td>FR DOOR LH</td>
			<td>20</td>
			<td>Power windows</td>
		</tr>
		<tr>
			<td>20</td>
			<td>FR DOOR RH</td>
			<td>20</td>
			<td>Power windows</td>
		</tr>
		<tr>
			<td>21</td>
			<td>RR FOG</td>
			<td>7,5</td>
			<td>No circuit</td>
		</tr>
		<tr>
			<td>22</td>
			<td>A/C</td>
			<td>7,5</td>
			<td>Air conditioning system</td>
		</tr>
		<tr>
			<td>23</td>
			<td>AM1</td>
			<td>5</td>
			<td>No circuit</td>
		</tr>
		<tr>
			<td>24</td>
			<td>TI & TE</td>
			<td>15</td>
			<td>Tilt and telescopic steering</td>
		</tr>
		<tr>
			<td>25</td>
			<td>FR P/SEAT RH</td>
			<td>30</td>
			<td>Front seat adjustment</td>
		</tr>
		<tr>
			<td>26</td>
			<td>PWR OUTLET</td>
			<td>15</td>
			<td>Power outlet</td>
		</tr>
		<tr>
			<td>27</td>
			<td>OBD</td>
			<td>7,5</td>
			<td>DLC3</td>
		</tr>
		<tr>
			<td>28</td>
			<td>PSB</td>
			<td>30</td>
			<td>Pre-collision seat belt</td>
		</tr>
		<tr>
			<td>29</td>
			<td>DOOR NO.1</td>
			<td>25</td>
			<td>Main body ECU</td>
		</tr>
		<tr>
			<td>30</td>
			<td>FR P/SEAT LH</td>
			<td>30</td>
			<td>Front seat adjustment</td>
		</tr>
		<tr>
			<td>31</td>
			<td>INVERTER</td>
			<td>15</td>
			<td>Inverter</td>
		</tr>
	</tbody>
</table>

<h3>Passenger’s side instrument panel</h3>

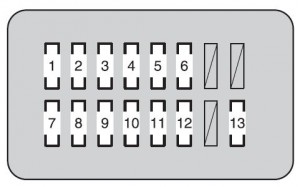

<figure aria-describedby=`caption-attachment-8866` class=`wp-caption alignnone` id=`attachment_8866` style=`width: 300px`><img alt=`Toyota Land Cruiser - fuse box - passenger's side instrument panel
Toyota Land Cruiser – fuse box – passenger’s side instrument panel
Fuse Ampere rating [A] Circuit
1 RSF LH 30 No circuit
2 B/DR CLSR RH 30 No circuit
3 B/DR CLSR LH 30 No circuit
4 RSF RH 30 No circuit
5 DOOR DL 15 No circuit
6 AHC-B 20 No circuit
7 AHC-B NO.2 10 No circuit
8 ECU-IG NO.4 5 Tire pressure warning system
9 SEAT-A/C FAN 10 No circuit
10 SEAT-HTR 20 Seat heater
11 AFS 5 No circuit
12 ECU-IG NO.3 5 No circuit
13 TV 10 Multi-display assembly



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
