Toyota Land Cruiser 200 (2007 – 2017) – fuse box diagram
Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

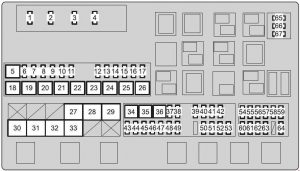

Engine Compartment Fuse Block (up to 2013)
| No. | Fuse | A | Function/component |
| 1 | A/F | 15 | A/F heater |
| 2 | HORN | 10 | Horn |
| 3 | EFI MAIN | 25 | EFI, A/F heater |
| 4 | IG2 MAIN | 30 | Injector, ignition, meter |
| 5 | RR A/C | 50 | Blower controller |
| 6 | SEAT-A/C LH | 25 | Seat heaters and ventilators |
| 7 | RR S/HTR | 20 | Rear seat heater |
| 8 | DEICER | 20 | Windshield wiper de-icer |
| 9 | CDS FAN | 25 | Condenser fan |
| 10 | TOW TAIL | 30 | Towing tail light system |
| 11 | RR P/SEAT | 30 | No circuit |
| 12 | ALT-CDS | 10 | Alternator condenser |
| 13 | FR FOG | 7.5 | Front fog lights |
| 14 | SECURITY | 5 | Security horn |
| 15 | SEAT-A/C RH | 25 | Seat heaters and ventilators |
| 16 | STOP | 15 | Stoplights, high mounted stoplight, brake controller, towing converter, ABS, VSC, main body ECU, EFI, trailer |
| 17 | TOW BRK | 30 | Brake controller |
| 18 | RR AUTO A/C | 50 | Rear air conditioning system |
| 19 | PTC-1 | 50 | PTC heater |
| 20 | PTC-2 | 50 | PTC heater |
| 21 | PTC-3 | 50 | PTC heater |
| 22 | RH-J/B | 50 | RH-J/B |
| 23 | SUB BATT | 40 | Towing |
| 24 | VGRS | 40 | VGRS ECU |
| 25 | H-LP CLN | 30 | Headlight cleaner |
| 26 | DEFOG | 30 | Rear window defogger |
| 27 | HTR | 50 | Front air conditioning system |
| 28 | PBD | 30 | No circuit |
| 29 | LH-J/B | 150 | LH-J/B |
| 30 | ALT | 180 | Alternator |
| 31 | A/PUMP N0.1 | 50 | Al DRIVER |
| 32 | A/PUMP N0.2 | 50 | Al DRIVER 2 |
| 33 | MAIN | 40 | Headlight, daytime running light system, HEAD LL, HEAD RL, HEAD LH, HEAD RH |
| 34 | ABS1 | 50 | ABS |
| 35 | ABS2 | 30 | ABS |
| 36 | ST | 30 | Starter system |
| 37 | IMB | 7.5 | ID code box, smart key system, GBS |
| 38 | AM2 | 5 | Main body ECU |
| 39 | D0ME2 | 7.5 | Vanity lights, overhead module, rear interior light |
| 40 | ECU-B2 | 5 | Driving position memory system |
| 41 | AMP 2 | 30 | Audio system |
| 42 | RSE | 7.5 | Rear seat entertainment |
| 43 | TOWING | 30 | Towing |
| 44 | DOOR NO.2 | 25 | Main body ECU |
| 45 | STR LOCK | 20 | Steering lock system |
| 46 | TURN-HAZ | 15 | Meter, front turn signal lights, rear turn signal lights, towing converter |
| 47 | EFI MAIN2 | 20 | Fuel pump |
| 48 | ETCS | 10 | EFI |
| 49 | ALT-S | 5 | IC-ALT |
| 50 | AMP 1 | 30 | Audio system |
| 51 | RAD N0.1 | 10 | Navigation system, audio system |
| 52 | ECU-B1 | 5 | Smart key system, overhead module, tilt and telescopic steering, meter, cool box, gateway ECU, steering sensor |
| 53 | DOME1 | 5 101) |
Illuminated entry system, clock |
| 54 | HEAD LH | 15 | Headlight high beam (left) |
| 55 | HEAD LL | 15 | Headlight low beam (left) |
| 56 | INJ | 10 | Injector, ignition system |
| 57 | MET | 5A | Meter |
| 58 | IGN | 10 | Circuit open, SRS airbag system, gateway ECU, occupant detection system, smart key system, ABS, VSC, steering lock system, GBS |
| 59 | DRL | 5 | Daytime running light |
| 60 | HEAD RH | 15 | Headlight high beam (right) |
| 61 | HEAD RL | 15 | Headlight low beam (right) |
| 62 | EFI N0.2 | 7.5 | Air injection system, air flow meter, EVP VSV, 02 SSR, KEY OFF PMP, AI DRIVER, AI EX VSV, ACIS VSV |
| 63 | RR A/C N0.2 | 7.5 | No circuit |
| 64 | DEF N0.2 | 5 | Outside rear view mirror defoggers |
| 65 | SPARE | 5 | Spare fuse |
| 66 | SPARE | 15 | Spare fuse |
| 67 | SPARE | 30 | Spare fuse |
| 1) From 2013 | |||

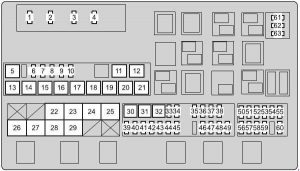

Engine Compartment Fuse Block (from 2014)
| No. | Fuse | A | Function/component |
| 1 | A/F | 15 | A/F heater |
| 2 | HORN | 10 | Horn |
| 3 | EFI MAIN | 25 | EFI, A/F heater, fuel pump |
| 4 | IG2 MAIN | 30 | INJ, IGN, MET |
| 5 | RR A/C | 50 | Blower controller |
| 6 | CDS FAN | 25 | Condenser fan |
| 7 | RR S/HTR | 20 | Rear seat heater |
| 8 | FR FOG | 7.5 | Front fog lights |
| 9 | STOP | 15 | Stoplights, high mounted stoplight, brake controller, ABS, VSC, main body ECU, EFI, trailer |
| 10 | SEAT-A/C LH | 25 | Seat heaters and ventilators |
| 11 | HWD4 | 30 | No circuit |
| 12 | HWD3 | 30 | No circuit |
| 13 | AHC | 50 | No circuit |
| 14 | PTC-1 | 50 | PTC heater |
| 15 | PTC-2 | 50 | PTC heater |
| 16 | PTC-3 | 50 | PTC heater |
| 17 | RH-J/B | 50 | RH-J/B |
| 18 | SUB BATT | 40 | Towing |
| 19 | VGRS | 40 | VGRS ECU |
| 20 | H-LP CLN | 30 | Headlight cleaner |
| 21 | DEFOG | 30 | Rear window defogger |
| 22 | SUB-R/B | 100 | SUB-R/B |
| 23 | HTR | 50 | Front air conditioning system |
| 24 | PBD | 30 | No circuit |
| 25 | LH-J/B | 150 | LH-J/B |
| 26 | ALT | 180 | Alternator |
| 27 | A/PUMP N0.1 | 50 | Al DRIVER |
| 28 | A/PUMP N0.2 | 50 | Al DRIVER 2 |
| 29 | MAIN | 40 | Headlight, daytime running light system, HEAD LL, HEAD RL, HEAD LH, HEAD RH |
| 30 | ABS1 | 50 | ABS |
| 31 | ABS2 | 30 | ABS |
| 32 | ST | 30 | Starter system |
| 33 | IMB | 7.5 | ID code box, smart key system, GBS |
| 34 | AM2 | 5 | Main body ECU |
| 35 | DOME2 | 7.5 | Vanity lights, overhead module, rear interior light |
| 36 | ECU-B2 | 5 | Driving position memory system |
| 37 | AMP 2 | 30 | Audio system |
| 38 | RSE | 7.5 | Rear seat entertainment |
| 39 | TOWING | 30 | Towing |
| 40 | DOOR NO.2 | 25 | Main body ECU |
| 41 | STR LOCK | 20 | Steering lock system |
| 42 | TURN-HAZ | 15 | Meter, front turn signal lights, side turn signal lights, rear turn signal lights, trailer |
| 43 | EFI MAIN2 | 20 | Fuel pump |
| 44 | ETCS | 10 | EFI |
| 45 | ALT-S | 5 | IC-ALT |
| 46 | AMP 1 | 30 | Audio system |
| 47 | RAD N0.1 | 10 | Navigation system, audio system, parking assist system |
| 48 | ECU-B1 | 5 | Smart key system, overhead module, tilt and telescopic steering, meter, cool box, gateway ECU, steering sensor |
| 49 | DOME1 | 10 | Illuminated entry system, clock |
| 50 | HEAD LH | 15 | Headlight high beam (left) |
| 51 | HEAD LL | 15 | Headlight low beam (left) |
| 52 | INJ | 10 | Injector, ignition system |
| 53 | MET | 5 | Meter |
| 54 | IGN | 10 | Circuit open, SRS airbag system, gateway ECU, smart key system, ABS, VSC, steering lock system, GBS |
| 55 | DRL | 5 | Daytime running light |
| 56 | HEAD RH | 15 | Headlight high beam (right) |
| 57 | HEAD RL | 15 | Headlight low beam (right) |
| 58 | EFI N0.2 | 7.5 | Air injection system, air flow meter |
| 59 | RR A/C NO.2 | 7.5 | No circuit |
| 60 | DEF NO.2 | 5 | Outside rear view mirror defoggers |
| 61 | SPARE | 5 | Spare fuse |
| 62 | SPARE | 15 | Spare fuse |
| 63 | SPARE | 30 | Spare fuse |

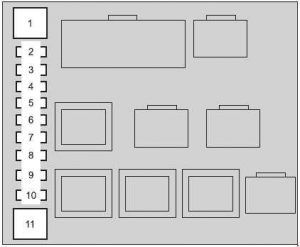

Engine Compartment Fuse Block (fuse box on the right side; from 2014)
| No. | Fuse | A | Function/component |
| 1 | HWD1 | 30 | No circuit |
| 2 | TOW BRK | 30 | Brake controller |
| 3 | RR P/SEAT | 30 | No circuit |
| 4 | PWR HTR | 7.5 | No circuit |
| 5 | DEICER | 20 | Windshield wiper de-icer |
| 6 | ALT-CDS | 10 | ALT-CDS |
| 7 | SECURITY | 5 | SECURITY |
| 8 | SEAT A/C RH | 25 | Seat heaters and ventilators |
| 9 | Al PMP HTR | 10 | Al pump heater |
| 10 | TOW TAIL | 30 | Towing tail light system |
| 11 | HWD2 | 30 | No circuit |
Fuse assignment in the fuse box, driver’s side instrument panel
| No. | Fuse | A | Function/component |
| 1 | RSFLH | 30 | No circuit |
| 2 | B/DR CLSR RH | 30 | No circuit |
| 3 | B/DR CLSR LH | 30 | No circuit |
| 4 | RSF RH | 30 | No circuit |
| 5 | DOOR DL | 15 | No circuit |
| 6 | AHC-B | 20 | No circuit |
| 7 | TEL | 5 | Multimedia |
| 8 | TOW BK/UP | 7.5 | Towing |
| 9 | AHC-B N0.2 | 10 | No circuit |
| 10 | ECU-IG N0.4 | 5 | Tire pressure warning system |
| 11 | SEAT-A/C FAN | 10 | Ventilators |
| 12 | SEAT-HTR | 20 | Seat heater |
| 13 | AFS | 5 | No circuit |
| 14 | ECU-IG N0.3 | 5 | Cruise control system |
| 15 | STRG HTR | 10 | Heated steering system |
| 16 | TV | 10 | Multi-display assembly |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
