Mazda 626 (2000 – 2001) – fuse box diagram
Year of production: 2000, 2001

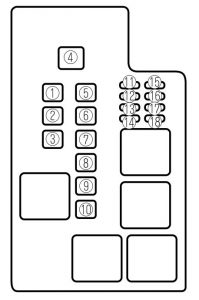

Fuse block (Engine compartment)
engine compartment
| Position | Description | Fuse rating [A] | Protected component |
| 1 | EGI INJ | 30 | Fuel injection system |
| 2 | DEFOG | 40 | Rear window defroster |
| 3 | — | — | — |
| 4 | MAIN | 100 | For protection of all circuits |
| 5 | IG KEY | 30 | RADIO, SUNROOF*, TURN, METER, ENGINE, POWER WINDOW*, WIPER fuses, Ignition system |
| 6 | HEATER | 40 | Heater, Air conditioner* |
| 7 | BTN | 40 | TAIL, STOP, ROOM, DOOR LOCK, HAZARD, POWER SEAT* fuses |
| 8 | COOLING FAN | 30 | Cooling fan |
| 9 | AD FAN | 30 | Additional fan* |
| 10 | (ABS) | 60 | Antilock brake system* |
| 11 | TAIL | 15 | Taillights, Parking lights, Dashboard illumination, License plate lights, Switches illumination |
| 12 | HORN | 15 | Horn |
| 13 | (ABS) | 20 | Antilock brake system* |
| 14 | — | — | — |
| 15 | ST. SIGN | 10 | Starter signal |
| 16 | H/L-L | 15 | Headlight (Left) |
| 17 | H/L-R | 15 | Headlight (Right) |
| 18 | (ABS) | 20 | Antilock brake system* |
| * – some models | |||
Fuse panel (Driver’s side)
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
