Mazda 626 (1997 – 2002) – fuse box diagram
Year of production: 1997 ,1997, 1998, 1999, 2000, 2001, 2002

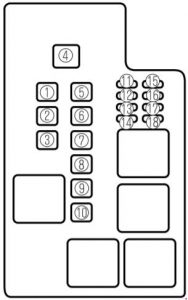

Fuse box in the engine compartment
| No. | Description | A | Circuits protected |
| 1 | EGI INJ | 30 | Fuel injection system |
| 2 | DEFOG | 40 | Rear window defroster |
| 3 | — | — | — |
| 4 | MAIN | 100 | For protection of all circuits |
| 5 | IG KEY | 30 | RADIO, SUNROOF, TURN, METER, ENGINE, POWER WINDOW, WIPER fuses, Ignition system |
| 6 | HEATER | 40 | Heater, Air conditioner |
| 7 | BTN | 40 | TAIL, STOP, ROOM, DOOR LOCK, HAZARD, POWER SEAT fuses |
| 8 | COOLING FAN | 30 | Cooling fan |
| 9 | AD FAN | 30 | Additional fan |
| 10 | (ABS) | 60 | Antilock brake system |
| 11 | TAIL | 15 | Taillights, Parking lights, Dashboard illumination, License plate lights, Switches illumination |
| 12 | HORN | 15 | Horn |
| 13 | (ABS) | 20 | Antilock brake system |
| 14 | — | — | — |
| 15 | — | — | — |
| 16 | H/L-L | 15 | Headlight (Left) |
| 17 | H/L-R | 15 | Headlight (Right) |
| 18 | (ABS) | 20 | Antilock brake system |

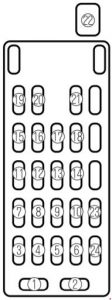

Passenger compartment fuse box
| No. | Description | A | Circuits protected |
| 1 | AUDIO | 15 | Audio system |
| 2 | ROOM | 15 | Interior lights, Trunk light |
| 3 | S.ROOF | 15 | Sunroof |
| 4 | METER | 10 | Gauges, Reverse lights |
| 5 | D.LOCK | 30 | Power door lock |
| 6 | HAZARD | 15 | Hazard warning lights |
| 7 | A/B&ABS | 10 | Air bag system, Antilock brake system |
| 8 | — | — | — |
| 9 | A/C | 10 | Air conditioner |
| 10 | — | — | — |
| 11 | TURN | 10 | Turn signals |
| 12 | WIPER | 20 | Windshield wipers and washer |
| 13 | P.WIND | 30 | Power windows |
| 14 | — | — | — |
| 15 | RADIO | 15 | Audio system, Socket, Outside mirror |
| 16 | ENGINE | 10 | Engine control system |
| 17 | ILLUMI | 10 | Taillights, License plate lights, Parking lights, Dashboard illumination |
| 18 | STOP | 15 | Brake lights, Horn, Cruise control |
| 19 | CIGAR | 15 | Accessory socket, Clock, Radio, Outside mirror |
| 20 | — | — | — |
| 21 | — | — | — |
| 22 | P.SEAT | 30 | Power seat |
| 23 | M.DEF | 15 | Mirror defroster |
| 24 | P.POINT | 15 | Power point |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
