Mazda 626 (1978 – 1982) – fuse box diagram
Year of production: 1978, 1979, 1980, 1981, 1982

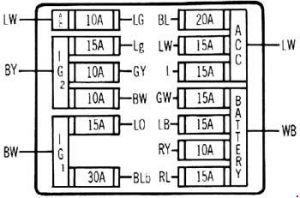

Fuse box
| Number | Fuse rating [A] | Function |
| LG | 10 | Radio Stereo Air Con. System |
| Lg | 15 | Sliding Sunroof |
| GY | 10 | Back Up Light Turn Signal Light Meter & Warning System Electronic Check Panel Cruise Control System Kick Down Solenoid (for Canada Spec) |
| BW | 10 | Slow Fuel Cut Valve Fuel Pump Carburetor Heater Charging System Emission Control System (except For Canada Spec) |
| LO | 15 | Heated Window |
| BLb | 30 | Power Window |
| BL | 20 | Air Con. System |
| LW | 15 | Headlight Cleaner |
| L | 15 | Wiper & Washer System |
| GW | 15 | Stop Light Horn |
| LB | 15 | Digital Clock Room & Spot Light Cigarette Lighter Luggage Compartment Light Chime Ignition Switch Light Door Lock Cylinder Fusible Light Auto Door Lock Seat Belt Warning Light Remote Control Mirror |
| RY | 10 | Turn Signal Light |
| RL | 15 | Headlight License Light Tail Light Parking Light Illumination Light Digital Clock Oscillator |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
