Buick Riviera (1996) – fuse box diagram
Year of production: 1996

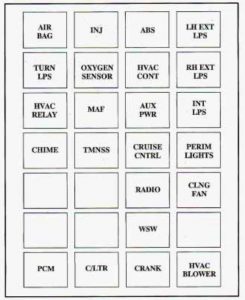

Instrument Panel Fuse Block
There is a fuse panel located at the end of the instrument panel near the driver’s door.
| Fuses | Usage |
| 1 | Air Bag |
| 2 | Injectors |
| 3 | Anti-Lock Brake System |
| 4 | Left Exterior Lamps |
| 5 | Turn Signal Lamps |
| 6 | Oxygen Sensor |
| 7 | Climate Control |
| 8 | Right Exterior Lamps |
| 9 | HVAC Relay |
| 10 | MAF |
| 11 | Auxiliary Power |
| 12 | Interior Lamps |
| 13 | Chime |
| 14 | TMNSS |
| 15 | Cruise Control |
| 16 | Perimeter Lights |
| 17 | Not Used |
| 18 | Not Used |
| 19 | Radio |
| 20 | Cooling Fan |
| 21 | Not Used |
| 22 | Not Used |
| 23 | Windshield Wipers |
| 24 | Not Used |
| 25 | PCM |
| 26 | Cigarette Lighter |
| 27 | Crank |
| 28 | HVAC Blower |

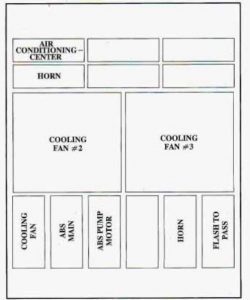

Engine Compartment Fuse Block
| Fuse | Usage |
| 1 | Air Conditioning Compressor |
| 2 | Not Used |
| 3 | Not Used |
| 4 | Horn |
| 5 | Not Used |
| 6 | Not Used |
| 7 | Cooling Fan #2 |
| 8 | Cooling Fan #3 |
| 9 | Cooling Fan |
| 10 | ABS Main |
| 11 | ABS Pump Motor |
| 12 | Not Used |
| 13 | Horn |
| 14 | Flash-To-.Pass |

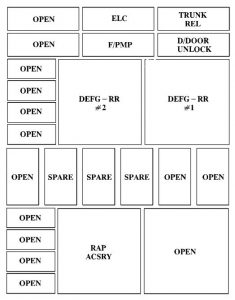

Rear Compartment Driver’s Side Fuse Block
| Fuse | Usage |
| 1 | Open |
| 2 | Electronic Level Control |
| 3 | Trunk Release Relay |
| 4 | Not Used |
| 5 | Fuel Pump Relay |
| 6 | Driver Door Unlock Relay |
| 7 | Not Used |
| 8 | Not Used |
| 9 | Not Used |
| 10 | Not Used |
| 11 | Rear Defogger Relay (Upper Zone) |
| 12 | Rear Defogger Relay (Lower Zone) |
| 13 | Not Used |
| 14 | Spare |
| 15 | Spare |
| 16 | Spare |
| 17 | Not Used |
| 18 | Not Used |
| 19 | Not Used |
| 20 | Not Used |
| 21 | Not Used |
| 22 | Not Used |
| 23 | Direct Accessory Power – Accessory |
| 24 | Open |
Rear Compartment Passenger’s Side Fuse Block
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
