Ford Focus mk1 (1998 – 2007) – fuse box diagram
Year of production: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

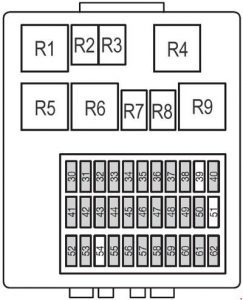

Passenger Compartment Fuse Box
| No. | A | Protected components |
| 30 | 7.5 | ’98-’01: Anti-lock Brake System (ABS) |
| 10 | ’02-’04: Light switch ’05-’07: Parking lamps |
|
| 31 | 15 | ’98-’04: Radio |
| 20 | ’05-’07: Radio | |
| 32 | 10 | ’98-’01: Light switch |
| 15 | ’02-’07: Turn signal | |
| 33 | 15 | ’98-’01: Hazard |
| 20 | ’02-’05: Horn, Power seats (SVT – ’03-’04) ’06-’07: Sunroof |
|
| 34 | 20 | ’98-’01: Horn ’02-’05: Sunroof ’06-’07: Horn |
| 35 | 7,5 | ’98-’05: Interior lamps, Power mirrors ’06-’07: A/C switch, Instrument cluster |
| 36 | 7,5 | ’98-’01: Central timer, Electronic modules ’02-’05: A/C switch, Hazard flasher (’02-’04), Instrument cluster ’06-’07: Interior lamps, Power mirrors |
| 37 | 25 | Europe: Power windows, central global closing (left-hand side) |
| 25 | USA: ’98-’03: Not used ’04-’05: Decklid/Liftgate release ’06-’07: Not used |
|
| 38 | 25 | Europe: Power windows, central global closing (right-hand side) USA: Not used |
| 39 | 10 | USA: ’98-’01: Reversing light ’02-’05: Not used |
| 2 | ’06-’07: PCM relay coil | |
| 40 | 10 | ’98-’01: Not used ’02-’05: Reversing light |
| 25 | ’06-’07: Rear defroster | |
| 41 | 7,5 | ’98-’01: Not used ’02-’05: Radio and cluster (accessory) ’06-’07: Not used |
| 42 | 15 | ’98-’01: Not used ’02-’04: Stop lamps |
| 10 | ’05-’07: Stop lamps, Shift interlock (P/N; ’06-’07) | |
| 43 | 15 | Europe: Power windows, rear screen wiper USA: ’05-’07: Rear wiper, Sunroof (ignition) |
| 44 | 20 | ’98-’04: Front and rear fog lights ’05-’06: Not used |
| 15 | ’07: Daytime running lights | |
| 45 | 7,5 | ’98-’01: Not used ’02-’07: Air conditioning, recirculated air |
| 46 | 15 | ’98-’01: Cigar lighter |
| 7,5 | ’02-’04: Anti-lock Brake System (ABS) ’05-’07: Not used |
|
| 47 | 15 | Europe: Cigar lighter, centre power point |
| 7,5 | USA: ’98-’01: Side lights (left) |
|
| 20 | ’02-’07: Cigar lighter, rear power point (SVT – ’03-’04) | |
| 48 | 7,5 | ’98-’01: Side lights (right) |
| 10 | ’02-’07: Data link connector | |
| 49 | 25 | ’98-’05: Rear defroster |
| 7,5 | ’06-’07: Heated mirror, heated backlite indicator | |
| 50 | 7,5 | ’98-’01: Central timer, radio ’02: Not used ’03-’05: Heated mirror, heated backlite indicator |
| 10 | ’06-’07: Reversing light (automatic transaxle only) | |
| 51 | 7,5 | ’98-’04: Not used ’05-’07: Front passenger sensing system |
| 52 | 15 | ’98-’02: Not used ’03-’07: Heated seats |
| 53 | 10 | Europe: Reversing light, heated washer jets |
| 10 | USA: Reversing light (manual transaxle only), speed control (’05-’07) | |
| 54 | – | Europe: Not used |
| 15 | USA: ’98-’01: Stop lamps |
|
| 25 | ’02-’07: Rear power windows | |
| 55 | 20 | ’98-’01: Front wipers |
| 25 | ’02-’07: Front power windows | |
| 56 | 25 | ’98-’01: Front power windows |
| 20 | ’02-’07: Front wipers | |
| 57 | 25 | ’98-’01: Rear power windows |
| 7,5 | ’02-’04: Position and side lights (right) ’05: Not used ’06-’07: Radio and cluster (accessory) |
|
| 58 | 7,5 | ’98-’01: Air conditioning, recirculated air ’02-’04: Position and side lights (left) ’05-’07: Not used |
| 59 | 10 | Europe: Light switch (headlamps) |
| 7,5 | USA: ’98-’01: Electronic modules, instrument cluster ’02-’07: Light switch (headlamps) |
|
| 60 | 7,5 | Air bag module |
| 61 | 7,5 | Europe: Electronic modules, instrument cluster |
| 7,5 | USA: ’98-’01: Light switch (headlamps) ’02-’07: PATS modules, instrument cluster |
|
| 62 | 7,5 | ’98-’01: Not used ’02-’04: License plate lamp ’05-’07: Radio (Start) |
| Relay | ||
| R1 | Starter | |
| R2 | Rear intermittent wiper ’06-’07: Not used |
|
| R3 | Front intermittent wiper ’06-’07: Not used |
|
| R4 | Power point | |
| R5 | Not used ’06-’07: Daytime running lamps |
|
| R6 | Europe: Not used USA: ’04-’05: Decklid/Liftgate release |
|
| R7 | Horn ’06-’07: Not used |
|
| R8 | Battery saver relay ’06-’07: Not used |
|
| R9 | Rear defrost/Heated mirror | |

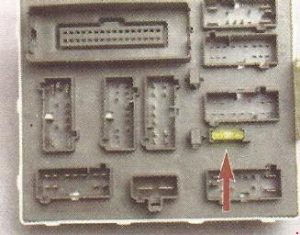

| ? | A | Protected components |
| 10 | 20 | Central locking system |

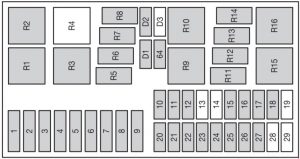

Engine Compartment Fuse Box
| No. | A | Protected components |
| 1 | 40 | Main power supply (to passenger compartment fuse panel) |
| 2 | 30 | USA: ’99-’04: Engine cooling fan (A/C) 2nd fuse ’05-’07: Not used |
| 3 | 40 | Europe: Glow plug heater 2 |
| 30 | USA: ’99-’02: Not used ’03-’04: Cooling fan (2.0L engine only) ’05-’07: Not used |
|
| 4 | 50 | Europe: Heated front screen |
| 30 | USA: ’99-’02: Not used ’03-’07: Air pump motor (PZEV engine only) |
|
| 5 | 60 | Europe: Diesel glow plug |
| 30 | USA: ’99-’02: Not used ’03-’04: Cooling fan 2 (2.0L engine only) ’05: Not used ’06-’07: Anti-lock Brake System (ABS) (pumps) |
|
| 6 | 30 | Europe: Engine cooling fan (air conditioning) |
| 50 | USA: Engine cooling fan (Primary fuse) | |
| 7 | 40 | Main power supply (to passenger compartment fuse panel) |
| 8 | 30 | Ignition switch, starter solenoid |
| 9 | 20 | Engine management |
| 10 | 10 | Europe: Battery voltage sensor |
| 10 | USA: ’99-’04: Battery voltage sensor, diagnostic plug (’99-’01) |
|
| 1 | Europe: ’00-’05: Battery voltage sensor USA: ’03-’07: Battery voltage sensor |
|
| 11 | 30 | Europe: Anti-lock Brake System (ABS) (pumps) |
| 30 | USA: ’99-’04: Anti-lock Brake System (ABS) ’05-’07: Subwoofer |
|
| 12 | 15 | Fuel pump, diesel injection pump |
| 13 | 30 | Europe: Headlight washer system |
| 20 | USA: ’99-’05: Not used ’06-’07: Anti-lock Brake System (ABS) (valves) |
|
| 14 | 10 | Europe: Daytime running lights (parking lights) |
| – | USA: Not used | |
| 15 | 10 | Europe: A/C clutch solenoid |
| 10 | USA: ’99-’01: Not used ’02-’04: A/C clutch solenoid |
|
| 20 | ’05: Anti-lock Brake System (ABS) ’06-’07: Not used |
|
| 16 | 15 | Europe: Low beam (left side) USA: Low beam (left side – HID headlamps) |
| 16 | 10 | USA: Low beam (left side – conventional headlamps) |
| 17 | 15 | Europe: Low beam (right side) USA: Low beam (right side – HID headlamps) |
| 17 | 10 | USA: Low beam (right side – conventional headlamps) |
| 18 | 10 | Europe: Heated oxygen sensors |
| 10 | USA: ’99-’02: Heated oxygen sensors ’03-’04: Heated oxygen sensors (2.0L engine only) |
|
| 15 | ’03-’04: Heated oxygen sensors (2.3L engine only) ’05-’07: Heated oxygen sensors |
|
| 19 | – | Europe: Not used |
| 40 | USA: ’99-’04: Not used ’05-’07: Heater blower motor |
|
| 20 | 10 | Engine module |
| 21 | 20 | Europe: Anti-lock Brake System (ABS) (valves) |
| 20 | USA: ’99-’04: Anti-lock Brake System (ABS) |
|
| 10 | ’05-’07: A/C | |
| 22 | 20 | Europe: Daytime running lights (Xenon headlights only) |
| 20 | USA: ’99-’05: Daytime running lights ’06-’07: Low beams |
|
| 23 | 20 | Europe: Auxiliary heater (diesel engine), power supply for battery backup sounder (ST170 only) |
| 15 | USA: ’99-’05: Not used ’06-’07: High beams, fog lamps |
|
| 24 | 30 | Europe: Glow plug heater 1, subwoofer (ST170 only) |
| 30 | USA: ’99-’01: Not used ’02-’04: Subwoofer ’05: Anti-lock Brake System (ABS) (pumps) ’06-’07: Not used |
|
| 25 | 15 | Europe: Daytime running lights (conventional headlights only) |
| 30 | USA: ’99-’01: Not used ’02: Subwoofer ’05-’07: Not used |
|
| 26 | 10 | Europe: Main beam left-hand side |
| 10 | USA: ’99-’03: Main beam left-hand side ’04: Not used |
|
| 15 | ’05: Fog lamps ’06-’07: Not used |
|
| 27 | 10 | Europe: Main beam right-hand side |
| 10 | USA: ’99-’03: Main beam right-hand side |
|
| 15 | ’04-’05: Main beam ’06-’07: Not used |
|
| 28 | 10 | Europe: Heated front screen, diesel fuel fired heater, diesel engine |
| 1 | USA: ’99-’06: Not used ’07: Anti-lock Brake System (ABS) |
|
| 29 | 30 | Europe: Engine cooling fan (air conditioning) |
| 10 | USA: ’99-’03: Not used ’04: Engine cooling fan (2.3L engine only) ’05-’07: Anti-lock Brake System (ABS) , speed control |
|
| 64 | 30 | Europe: Heater blower motor |
| 30 | USA: ’99-’01: Heater blower motor |
|
| 40 | ’02-’04: Heater blower motor ’05-’07: Not used |
|
| D1 | – | PCM diode |
| D2 | – | Engine cooling fan diode |
| D3 | 30 | Europe: Engine cooling fan diode |
| D3 | – | USA: ’99-’02: Not used ’03-’07: A/C clutch diode |
| Relay | ||
| R1 | Ignition | |
| R2 | Europe: Glow plug USA: ’99-’02: Not used ’03-’05: Air pump motor ’06-’07: High beam relay, fog lamps relay |
|
| R3 | Europe: Heated front screen Engine cooling fan USA: ’99-’02: Not used ’03-’04: Engine cooling fan (2.3L engine only) ’05-’07: Engine cooling fan (high speed) |
|
| R4 | Europe: Headlight washer system USA: ’99-’04: Not used ’05-’07: Engine cooling fan (low speed) |
|
| R5 | Europe: High beam USA: ’99-’04: High beam ’05: High beam, fog light ’06-’07: Air conditioner |
|
| R6 | Low beam | |
| R7 | Fuel pump | |
| R8 | Main relay Injection pump power |
|
| R9 | Europe: Engine cooling fan Glow plug heater USA: ’99-’02: Not used ’03-’04: Engine cooling fan (2.0L engine only) ’05-’07: Engine cooling fan |
|
| R10 | Europe: Glow plug 2 Engine cooling fan 2 USA: ’99-’02: Not used ’03-’04: Engine cooling fan (2.0L engine only) ’05-’07: Engine cooling fan |
|
| R11 | Europe: Air conditioner USA: ’99-’05: Air conditioner ’06-’07: Not used |
|
| R12 | Europe: Daytime running lights USA: ’99-’05: Daytime running lights ’06-’07: Not used |
|
| R13 | Europe: Fog light Starter USA: ’99-’05: Fog light ’05-’07: Not used |
|
| R14 | Europe: Xenon headlights USA: ’99-’00: Not used ’01-’02: Stop lights (AdvanceTrac) ’03-’04: Xenon headlights (SVT) ’05-’07: Not used |
|
| R15 | Europe: Engine cooling fan (high speed) USA: ’99-’04: Engine cooling fan (high speed) ’05: Not used ’06-’07: Air pump |
|
| R16 | Europe: Engine cooling fan (low speed) USA: ’99-’04: Engine cooling fan (low speed) ’05: Not used ’06-’07: Not used |
|
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
