Acura MDX (2001 – 2002) – fuse box diagram
Year of production: 2001, 2002

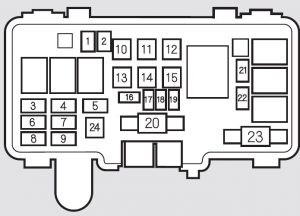

Primary under-hood fuse box
| Fuse | Ampere rating [A] | Circuits protected |
| 1 | 20 | Spare Fuse |
| 2 | 30 | Spare Fuse |
| 3 | 20 | Right Headlight |
| 4 | 15 | ACG S |
| 5 | 15 | Hazard |
| 6 | — | Not used |
| 7 | 20 | Stop |
| 8 | 20 | Left Headlight |
| 9 | 20 | Radio |
| 10 | 40 | Power Window Motor |
| 11 | 30 | Rear A/C |
| 12 | 30 | Rear Defroster |
| 13 | 40 | Back Up, ACC |
| 14 | 40 | Power Seat |
| 15 | 40 | Heater Motor |
| 16 | 30 | Cooling Fan |
| 17 | 7,5 | Spare Fuse |
| 18 | 10 | Spare Fuse |
| 19 | 15 | Spare Fuse |
| 20 | 120 | Condenser Fan |
| 22 | 7,5 | MG Clutch |
| 23 | 50 | IGI Main |
| 24 | 20 | Fog Lights |

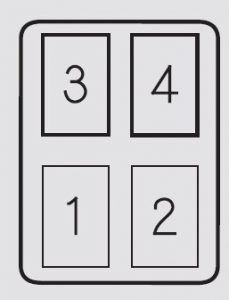

Secondary under-hood fuse box
| Position | Ampere rating [A] | Circuits protected |
| 1 | 40 | ABS Motor |
| 2 | 20 | ABS F/S |
| 3 | 20 | Rear ACC Socket |
| 4 | 20 | 4WD |
Interior fuse box (driver’s side)
![Acura MDX - fuse box - interior (driver's side)` class=`wp-image-12883 size-medium` height=`300` loading=`lazy` sizes=`(max-width: 140px) 100vw, 140px` src=`/uploads/e4b/014/a8e/e4b014a8e87290462b3e79d2492ce293.jpg` srcset=`/uploads/e4b/014/a8e/e4b014a8e87290462b3e79d2492ce293.jpg 140w, 332w` width=`140` />
<figcaption class=`wp-caption-text` id=`caption-attachment-12883`>Acura MDX – fuse box – interior (driver’s side)</figcaption>
</figure>
<table class=`table table-hover table-bordered`>
<tbody>
<tr>
<td>Position</td>
<td>Ampere rating [A]</td>
<td>Circuits protected</td>
</tr>
<tr>
<td>1</td>
<td>15</td>
<td>Fuel Pump</td>
</tr>
<tr>
<td>2</td>
<td>10</td>
<td>SRS</td>
</tr>
<tr>
<td>3</td>
<td>7,5</td>
<td>Heater Control, A/C Clutch Relay, Cooling Fan Relay</td>
</tr>
<tr>
<td>4</td>
<td>7,5</td>
<td>Power Mirror</td>
</tr>
<tr>
<td>5</td>
<td>10</td>
<td>Daytime Running Light /Rear Wiper</td>
</tr>
<tr>
<td>6</td>
<td>15</td>
<td>ECU(PCM), Cruise Control</td>
</tr>
<tr>
<td>7</td>
<td>7,5</td>
<td>OPDS</td>
</tr>
<tr>
<td>8</td>
<td>7,5</td>
<td>ACC Relay</td>
</tr>
<tr>
<td>9</td>
<td>10</td>
<td>Back-up Lights, Instrument Lights</td>
</tr>
<tr>
<td>10</td>
<td>7,5</td>
<td>Turn Signals</td>
</tr>
<tr>
<td>11</td>
<td>15</td>
<td>IG Coil</td>
</tr>
<tr>
<td>12</td>
<td>30</td>
<td>Front Wiper</td>
</tr>
<tr>
<td>13</td>
<td>7,5</td>
<td>Starter Signal</td>
</tr>
<tr>
<td colspan=`3`>*: On Canadian models</td>
</tr>
</tbody>
</table>
<p> </p>

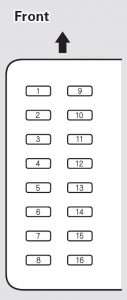

<h3>Interior fuse box (passenger’s side)</h3>
<figure aria-describedby=`caption-attachment-12884` class=`wp-caption alignnone` id=`attachment_12884` style=`width: 127px`><img alt=`Acura MDX - fuse box - interior (passenger's side)](/uploads/9c3/c98/275/9c3c98275d6b9b820e5dc7186563d719.jpg)
| Position | Ampere rating [A] | Circuits protected |
| 1 | 30 | Sun Roof |
| 2 | 20 | Driver’s Power Seat Reclining |
| 3 | 20 | Passenger’s Power Seat Sliding |
| 4 | 20 | Driver’s Power Seat Sliding |
| 5 | 20 | Passenger’s Power Seat Reclining |
| 6 | 10 | Daytime Running Light* |
| 7 | 20 | Driver’s side Rear Power Window |
| 8 | 20 | Front Passenger’s Power Window |
| 9 | 15 | Front Accessory Socket |
| 10 | 15 | Small Light |
| 11 | 10 | Interior Light, Radio |
| 12 | 20 | Power Door Lock |
| 13 | 7,5 | Back Up |
| 14 | 20 | Heated Seat |
| 15 | 20 | Driver’s Power Window |
| 16 | 20 | Passenger’s Side Rear Power Window |
| *: On Canadian models | ||
