Lexus ES330 (2004 – 2006) – fuse box diagram
Year of production: 2004, 2005, 2006
Engine compartment

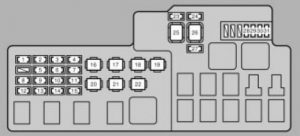

Lexus ES330 – fuse box – engine compartment
Driver’s side instrument panel
![Lexus ES330 - fuse box - driver's side instrument panel` class=`wp-image-13135 size-medium` height=`219` loading=`lazy` sizes=`(max-width: 300px) 100vw, 300px` src=`/uploads/6aa/3fe/909/6aa3fe909160cc9d741f86d30dae12ba.jpg` srcset=`/uploads/6aa/3fe/909/6aa3fe909160cc9d741f86d30dae12ba.jpg 300w, 301w` width=`300` />
<figcaption class=`wp-caption-text` id=`caption-attachment-13135`>Lexus ES330 – fuse box – driver’s side instrument panel</figcaption>
</figure>
<table class=`table table-hover table-bordered`>
<tbody>
<tr>
<td colspan=`2]()
Fuse
Ampere rating [A]
Circuit protected
1
A/F
25
Multiport fuel injection system/sequential multiport fuel injection system
2
DOOR1
25
Multiplex communication system (power door lock system, auto−door locking system, wireless remote control system)
3
TEL
5
No circuit
4
AM2
30
All components in “IGN” and “IG2” fuses and starting system
5
EFI
20
Multiport fuel injection system/sequential multiport fuel injection system
6
ALT−S
5
Charging system
7
HEAD LH UPR
10
Left−hand headlight (high beam)
8
ETCS
10
Multiport fuel injection system/sequential multiport fuel injection system
9
HORN
10
Horns
10
IGN
15
Starting system
11
HEAD RH UPR
10
Right−hand headlight (high beam)
12
HAZ
15
Emergency flashers
13
D.C.C
30
All components in “ECU−B”, “RAD NO.1” and “DOME” fuses
14
IG2
10
Multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system, front seat belt pretensioners, cruise control system
15
ST
5
Starting system
16
ADJ PDL
30
Power adjustable pedals
17
CDS
30
Electric cooling fan
18
ABS NO.2
40
Anti−lock brake system, vehicle skid control system, traction control system, brake assist system
19
MAIN
40
All components in “HEAD LH LWR”, “HEAD RH LWR”, “HEAD LH UPR”, “HEAD RH UPR” and “DRL” fuses
20
ABS NO.3
40
Anti−lock brake system, vehicle skid control system, traction control system, brake assist system
21
HTR
50
Air conditioning system
22
RDI
30
Electric cooling fan
23
SPARE
5
Spare fuse
24
SPARE
10
Spare fuse
25
ABS NO.1
60
All components in “RDI FAN”, “ABS NO.2”, “ABS NO.3”, “CDS”, “HTR (50 A)” and “ADJ PDL” fuses and anti−lock brake system, vehicle skid control system, traction control system, brake assist system
26
ALT
120
All components in “DEF”, “PWR NO.1”, “PWR NO.2”, “PWR NO.3”, “PWR NO.4”, “STOP”, “DOOR NO.2”, “OBD”, “PWR SEAT”, “FUEL OPEN”, “FOG”, “AMP”, “PANEL”, “TAIL”, “AM1”, “CIG”, “POWER POINT”, “RAD NO.2”, “ECU−ACC”, “GAUGE1”, “GAUGE2”, “ECU−IG”, “WIPER”, “WASHER”, “HTR (10 A)”, “SEAT HTR”, and “SUN−SHADE” fuses
27
SPARE
15
Spare fuse
28
A/C
10
Air conditioning system
29
DRL
5
Daytime running light system
30
HEAD RH LWR
15
Right−hand headlight (low beam)
31
HEAD LH LWR
15
Left−hand headlight (low beam) and front fog lights
32
ECU−B
10
Multiplex communication system (power door lock system, security system, auto−door locking system, automatic light control system, headlight delay off system, tail light auto cut system, illuminated entry system, daytime running light system, wireless remote control system) air conditioning system, electronic modulated suspension, driving position memory system
33
DOME
7,5
Ignition switch light, interior light, personal lights, foot lights, door courtesy lights, trunk light, vanity lights, garage door opener, clock, outside temperature gauge, multi−information display
34
CIG
15
Cigarette lighter
35
ECU−ACC
5
Power rear view mirrors, clock, multi−information display, driving position memory system
36
RAD NO.2
10
Car audio system, navigation system
37
POWER POINT
15
Power outlet
38
RAD NO.1
20
Car audio system, navigation system
39
GAUGE1
10
Gauges and meters, clock, outside temperature gauge, multi−information display, shift lock system
40
ECU−IG
10
SRS airbag system, power windows, anti−lock brake system, electronic modulated suspension, driving position memory system
41
WIPER
25
Windshield wipers
42
HTR
10
Air conditioning system
43
MIR HTR
10
Outside rear view mirror heaters
44
AM1
5
Starting system
46
FOG
15
Front fog lights
46
SUN−SHADE
15
Rear sunshade
47
GAUGE2
10
Auto anti−glare inside rear view mirror, compass, back−up lights, automatic light control system, automatic headlight leveling system, cruise control system, seat belt reminder lights
48
PANEL
10
Glove box light, console box light, clock, outside temperature gauge, multi−information display, instrument cluster lights, instrument panel lights, overdrive−off indicator light
49
TAIL
10
Tail lights, parking lights, license plate lights
50
PWR NO.4
20
Rear passenger’s power window (left side)
51
PWR NO.2
20
Front passenger’s door lock system, front passenger’s power window
52
OBD
7,5
On−board diagnosis system
53
SEAT HTR
20
Seat ventilators/heaters
54
WASHER
15
Windshield washer
55
FAN RLY
10
Electric cooling fans
56
STOP
15
Stop lights, high mounted stoplight
57
FUEL OPEN
5
Fuel filler door opener
58
DOOR NO.2
25
Multiplex communication system (power door lock system, auto−door locking system, wireless remote control system)
59
AMP
25
Car audio system
60
PWR NO.3
20
Rear passenger’s power window (right side)
61
PWR SEAT
30
Power seats, driving position memory system
62
PWR NO.1
30
Driver’s door lock system, driver’s power window, electric moon roof
63
DEF
40
Rear window defogger
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
