Chevrolet Cruze (2008 – 2016) – fuse box diagram
Year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Engine compartment fuse box

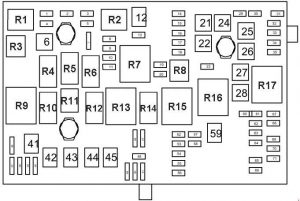

Chevrolet Cruze – fuse box diagram – engine compartment
| No. |
A |
Description |
| 1 |
15 |
Transmission Control Module |
| 2 |
15 |
Engine Control Module |
| 3 |
N/A |
Not Used |
| 5 |
15 |
Transmission Control Module, Engine Control Module, Mass Air Flow/Intake Air Temperature Sensor, Output Speed Sensor |
| 6 |
30 |
Windshield Wiper Relays |
| 7 |
N/A |
Not Used |
| 8 |
15 |
Fuel injectors |
| 9 |
15 |
Ignition Coil, Fuel Injectors |
| 10 |
15 |
Engine Control Module, Output Speed Sensor |
| 11 |
10 |
Heated Oxygen Sensors |
| 12 |
30 |
Starter Motor |
| 13 |
7.5 |
Evaporative Emission (EVAP) Canister Vent Solenoid Valve |
| 14 |
N/A |
Not Used |
| 15 |
N/A |
Not Used |
| 16 |
7.5 |
Air Quality Sensor |
| 17 |
5 |
Inflatable Restraint Sensing and Diagnostic Module |
| 18 |
10 |
Fuel Pump Control Module |
| 19 |
N/A |
Not Used |
| 20 |
20 |
Fuel Pump Relay |
| 21 |
30 |
Windows Motors, Front Door |
| 22 |
N/A |
Not Used |
| 23 |
N/A |
Not Used |
| 24 |
30 |
Windows Motors, Front Door |
| 25 |
N/A |
Not Used |
| 26 |
40 |
Electronic Brake Control Module (EBCM) |
| 27 |
30 |
Remote Control Door Lock Receiver |
| 28 |
40 |
Rear Demister Grid |
| 29 |
N/A |
Not Used |
| 30 |
15 |
Electronic Brake Control Module (EBCM) |
| 31 |
20 |
Body Control Module |
| 32 |
20 |
Body Control Module |
| 33 |
30 |
Heated Seat Control Module |
| 34 |
25 |
Sunroof Control Module |
| 35 |
30 |
Audio Amplifier |
| 36 |
N/A |
Not Used |
| 37 |
10 |
Headlamp – Right Main beam |
| 38 |
10 |
Headlamp – Left Main beam |
| 39 |
N/A |
Not Used |
| 40 |
N/A |
Not Used |
| 41 |
N/A |
Not Used |
| 42 |
20/30 |
Cooling Fan Relays, Cooling Fan Motor |
| 43 |
N/A |
Not Used |
| 44 |
N/A |
Not Used |
| 45 |
30/40 |
Cooling Fan High Speed Relay, Cooling Fan Motor |
| 46 |
10 |
Cooling Fan Relays |
| 47 |
10 |
Heated Oxygen Sensors, Throttle Body |
| 48 |
15 |
Fog Lights, Front |
| 49 |
N/A |
Not Used |
| 50 |
N/A |
Not Used |
| 51 |
15 |
Horn |
| 52 |
5 |
Instrument Cluster |
| 53 |
10 |
Inside Rearview Mirror |
| 54 |
5 |
Headlamp Switch, Electrical Auxiliary Heater, HVAC Control Module |
| 55 |
7.5 |
Window Switches, Front, Mirror Switch |
| 56 |
15 |
Windscreen Washer Pump |
| 57 |
15 |
Steering Column Lock Control Module |
| 58 |
N/A |
Not Used |
| 59 |
30 |
Fuel Heater |
| 60 |
7.5 |
Outside Rearview Mirrors |
| 61 |
N/A |
Not Used |
| 62 |
10 |
A/C Compressor Clutch Relay, A/C Compressor Clutch |
| 63 |
N/A |
Not Used |
| 64 |
5 |
Inflatable Restraint Sensing and Diagnostic Module |
| 65 |
N/A |
Not Used |
| 66 |
N/A |
Not Used |
| 67 |
20 |
Fuel Pump Control Module |
| 68 |
N/A |
Not Used |
| 69 |
5 |
Body Control Module |
| 70 |
5 |
Rain Sensor |
| 71 |
N/A |
Not Used |
| Relays |
| 1 |
A/C Compressor Clutch |
| 2 |
Starter |
| 3 |
Cooling Fan |
| 4 |
Windshield Wiper Speed Control |
| 5 |
Windshield Wiper |
| 6 |
Not Used |
| 7 |
Powertrain |
| 8 |
Fuel Pump |
| 9 |
Cooling Fan Medium Speed 1 |
| 10 |
Cooling Fan Medium Speed 2 |
| 11 |
Not Used |
| 12 |
Cooling Fan Speed Control (Or in Relay Block – Under-bonnet) |
| 13 |
Cooling Fan High Speed Relay |
| 14 |
Not Used |
| 15 |
Ignition Main Relay |
| 16 |
Fuel Heater Relay |
| 17 |
Rear Window Defogger |
| Note: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block. |
| – |
Horn Relay |
| – |
Windscreen Washer Pump Relay |
| – |
Front Fog Lamp Relay |
| – |
Headlamp High Beam Relay |
Instrument Panel Fuse Block

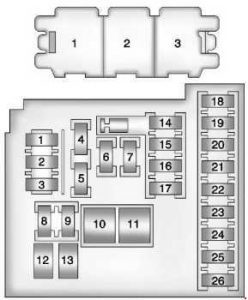

Chevrolet Cruze – fuse box diagram – instrument panel
| No. |
A |
Description |
| 1 |
10 |
Mobile Telephone Control Module |
| 2 |
N/A |
Not Used |
| 3 |
25 |
Body Control Module |
| 4 |
20 |
Radio |
| 5 |
7.5 |
Parking Assist Control Module, Power Sounder, Multifunction Switch – Centre Console, Display |
| 6 |
20 |
Cigar Lighter – Front |
| 7 |
20 |
Accessory Power Outlet – Centre Console 1/2 |
| 8 |
30 |
Body Control Module |
| 9 |
30 |
Body Control Module |
| 10 |
30 |
Body Control Module |
| 11 |
40 |
Blower Motor Control Module |
| 12 |
N/A |
Not Used |
| 13 |
25 |
Heated Seat Control Module |
| 14 |
7.5 |
Data Link Connector, Oil Feeding Connector |
| 15 |
10 |
Inflatable Restraint Sensing and Diagnostic Module |
| 16 |
10 |
Rear Compartment Lid Release Relay |
| 17 |
15 |
HVAC Control Module / HVAC Control Assembly |
| 18 |
N/A |
Not Used |
| 19 |
N/A |
Not Used |
| 20 |
N/A |
Not Used |
| 21 |
15 |
Instrument Cluster |
| 22 |
2 |
Ignition Switch / Remote Control Door Lock Receiver |
| 23 |
20 |
Body Control Module |
| 24 |
20 |
Body Control Module |
| 25 |
20 |
Steering Column Lock Control Module |
| 26 |
N/A |
Not Used |
| Relays |
| 1 |
Rear Compartment Lid Release |
| 2 |
Logistic Mode Relay 1 |
| 3 |
Auxiliary Power Relay |
Fuse box above the battery

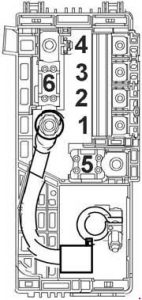

Chevrolet Cruze – fuse box diagram – above the battery
| No. |
A |
Description |
| 1 |
100 |
Fuse Block – Instrument Panel |
| 2 |
100 |
Fuse Block – Instrument Panel |
| 3 |
80 |
Electrical Power Steering (EPS) (NJ1) |
| 4 |
N/A |
Not Used |
| 5 |
250 |
Fuse Block – Battery Auxiliary |
| 6 |
250/500 |
Starter Motor |
Chevrolet Cruze – fuse box diagram – above the battery
| No. |
A |
Description |
| 5 |
80 |
Glow Plug Control Module |
| 6 |
100 |
Electrical Auxiliary Heater |
| 7 |
N/A |
Not Used |
| 8 |
N/A |
Not Used |
Chevrolet Cruze – fuse box diagram – above the battery
| No. |
Relays |
| 1 |
Cooling Fan Left Medium Speed Relay |
| 2 |
Cooling Fan Speed Control 2 Relay |
| 3 |
Cooling Fan Right Medium Speed Relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
