KIA Sportage (2002) – fuse box diagram
Year of production: 2002

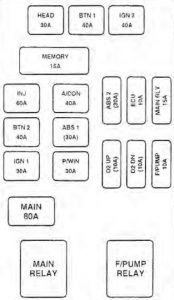

Engine compartment
| Description | Ampere rating [A] | Protected component |
| HEAD | 30 | Headlight |
| BTN 1 | 40 | Stop lights, License plate lights, Dome lights, Hazard lamp |
| IGN 2 | 40 | Ignition |
| MEMORY | 15 | Room lights, Audio, Meterset |
| INJ | 60 | InjectorI |
| BTN 2 | 40 | Stop lights, License plate lights, Dome lights, HAzard lamp |
| IGN 1 | 30 | Ignition |
| A/CON | 40 | Air conditioner system |
| ABS 1 | 30 | Anti-lock brake system |
| P/WIN | 30 | Power windows |
| ABS 2 | (30) | Anti-lock brake system |
| ECU | 10 | Engine control unit |
| MAIN RLY | 15 | Fuel Pump, Injectors, Main relay, Fuel pump relay |
| O2 UP | (10) | Oxygen sensor |
| O2 DN | (10) | Oxygen sensor |
| F/PUMP | 10 | Fuel Pump, Diagnosis connector |
| MAIN | 80 | For protection of all cir |
| () – option | ||
