Hyundai Equus (2013 – 2015) – fuse box diagram

Year of production: 2013, 2014, 2015

Instrument panel (Driver’s side fuse panel)

Hyundai Equss - fuse box - instrument panel (driver's side)` class=`size-medium wp-image-14712` height=`187` loading=`lazy` sizes=`(max-width: 300px) 100vw, 300px` src=`/uploads/122/5e0/b41/1225e0b415f330ed9d7cfcde7083047f.jpg` srcset=`/uploads/122/5e0/b41/1225e0b415f330ed9d7cfcde7083047f.jpg 300w, 734w` width=`300` /> <figcaption class=`wp-caption-text` id=`caption-attachment-14712`>Hyundai Equss – fuse box –<br /> instrument panel (driver’s side)</figcaption> </figure> <table class=`table table-hover table-bordered`> <tbody> <tr> <td>Symbol</td> <td>Fuse name</td> <td>Ampere rating [A]</td> <td>Protected component</td> </tr> <tr> <td><a href=`/uploads/6e4/36d/40a/6e436d40a1c3f8ffbee320071b782b7f.jpg`><img alt=`` class=`alignnone size-full wp-image-14679` height=`27` loading=`lazy` src=`/uploads/6e4/36d/40a/6e436d40a1c3f8ffbee320071b782b7f.jpg` width=`60` /></td> <td>PDM B+</td> <td>25</td> <td>Smart Key Control Module</td> </tr> <tr> <td><a href=`/uploads/341/069/dda/341069dda0936ee5615e33b87ae49f56.jpg`><img alt=`` class=`alignnone size-full wp-image-7253` height=`28` loading=`lazy` src=`/uploads/341/069/dda/341069dda0936ee5615e33b87ae49f56.jpg` width=`60` /></td> <td>Hazard</td> <td>10</td> <td>Center Facia Switch</td> </tr> <tr> <td><a href=`/uploads/439/351/c4f/439351c4fc3f760d614025ab573f93ad.jpg`><img alt=`` class=`alignnone size-full wp-image-3703` height=`32` loading=`lazy` src=`/uploads/439/351/c4f/439351c4fc3f760d614025ab573f93ad.jpg` width=`48` /></td> <td>EPB</td> <td>10</td> <td>Electric Parking Brake Switch, Crash Pad Switch</td> </tr> <tr> <td><a href=`/uploads/324/850/6fc/3248506fc2d2572a8f9a0b7fa91f110e.jpg`><img alt=`` class=`alignnone size-full wp-image-14680` height=`32` loading=`lazy` src=`/uploads/324/850/6fc/3248506fc2d2572a8f9a0b7fa91f110e.jpg` width=`60` /></td> <td>RF Receiver</td> <td>10</td> <td>RF Receiver, Security Indicator</td> </tr> <tr> <td><a href=`/uploads/93a/7db/1a6/93a7db1a6551d69a7765c4a953d4ac29.jpg`><img alt=`` class=`alignnone size-full wp-image-14681` height=`35` loading=`lazy` src=`/uploads/93a/7db/1a6/93a7db1a6551d69a7765c4a953d4ac29.jpg` width=`60` /></td> <td>PDM IG1</td> <td>10</td> <td>Smart Key Control Module</td> </tr> <tr> <td><img alt=`` class=`alignnone wp-image-14682 size-full` height=`28` loading=`lazy` src=`/uploads/f0b/85a/b36/f0b85ab3667110135f058aa23119f705.jpg` width=`60` /></td> <td>Shift Lever IG1</td> <td>10</td> <td>Electric ATM Shift Lever, ATM Shift Lever IND.</td> </tr> <tr> <td><a href=`/uploads/078/8c2/b75/0788c2b751b8617b98859014e955bda2.jpg`><img alt=`` class=`alignnone size-full wp-image-10655` height=`30` loading=`lazy` src=`/uploads/078/8c2/b75/0788c2b751b8617b98859014e955bda2.jpg` width=`60` /></td> <td>Air Bag IND.</td> <td>10</td> <td>Instrument Cluster</td> </tr> <tr> <td><a href=`/uploads/579/457/de9/579457de9ba2de2f82213dea60a87884.jpg`><img alt=`` class=`alignnone size-full wp-image-14683` height=`23` loading=`lazy` src=`/uploads/579/457/de9/579457de9ba2de2f82213dea60a87884.jpg` width=`60` /></td> <td>Smart Key</td> <td>10</td> <td>Start/Stop Button Switch</td> </tr> <tr> <td><a href=`/uploads/7ae/9ab/44c/7ae9ab44c7b80fa2f582784e6dd5cb09.jpg`><img alt=`` class=`alignnone size-full wp-image-14575` height=`25` loading=`lazy` src=`/uploads/7ae/9ab/44c/7ae9ab44c7b80fa2f582784e6dd5cb09.jpg` width=`60` /></td> <td>Power Handle</td> <td>15</td> <td>Steering Tilt & Telescopic Module</td> </tr> <tr> <td><a href=`/uploads/9fc/97f/985/9fc97f985715361e57142150ed863f0c.jpg`><img alt=`` class=`alignnone size-full wp-image-14652` height=`26` loading=`lazy` src=`/uploads/9fc/97f/985/9fc97f985715361e57142150ed863f0c.jpg` width=`60` /></td> <td>Memory</td> <td>10</td> <td>Power Trunk Lid Control Module, Relax Module Driver/Passenger Door Module, Rear Door Module LH/RH, Passenger Door Lamp, Passenger Door Mood Lamp, Rear Door Lamp LH/RH, Rear Door Mood Lamp LH/RH, Instrument Cluster, Driver IMS Control Module, BCM, Analogue Clock, LCD Panel Switch, A/C Control Module, Data Link Connector</td> </tr> <tr> <td><a href=`/uploads/4f4/c86/649/4f4c86649f46c0ffd96750ac7b0e52ff.jpg`><img alt=`` class=`alignnone size-full wp-image-14684` height=`28` loading=`lazy` src=`/uploads/4f4/c86/649/4f4c86649f46c0ffd96750ac7b0e52ff.jpg` width=`60` /></td> <td>TPMS</td> <td>10</td> <td>Tire Pressure Monitoring Module</td> </tr> <tr> <td><a href=`/uploads/efc/c19/b52/efcc19b52f2462b47c010a3c5ba97aa7.jpg`><img alt=`` class=`alignnone size-full wp-image-14685` height=`30` loading=`lazy` src=`/uploads/efc/c19/b52/efcc19b52f2462b47c010a3c5ba97aa7.jpg` width=`60` /></td> <td>Active Head<br /> Rest</td> <td>10</td> <td>Active Head Rest Sensor Module</td> </tr> <tr> <td><a href=`/uploads/533/93d/cd8/53393dcd82a462a29c97edb3ac90ad5e.jpg`><img alt=`` class=`alignnone size-full wp-image-7117` height=`19` loading=`lazy` src=`/uploads/533/93d/cd8/53393dcd82a462a29c97edb3ac90ad5e.jpg` width=`60` /></td> <td>Cluster</td> <td>10</td> <td>Instrument Cluster, Head-Up Display</td> </tr> <tr> <td><a href=`/uploads/0dc/f27/2bb/0dcf272bbfc7aaa23a10f9cab64f6e40.jpg`><img alt=`` class=`alignnone size-full wp-image-7145` height=`23` loading=`lazy` src=`/uploads/0dc/f27/2bb/0dcf272bbfc7aaa23a10f9cab64f6e40.jpg` width=`60` /></td> <td>Stop Lamp</td> <td>10</td> <td>Stop Lamp Switch, Smart Key Control Module</td> </tr> <tr> <td><a href=`/uploads/7d2/2b5/f13/7d22b5f134bbd626e655df5e3e64de14.jpg`><img alt=`` class=`alignnone size-full wp-image-14686` height=`32` loading=`lazy` src=`/uploads/7d2/2b5/f13/7d22b5f134bbd626e655df5e3e64de14.jpg` width=`60` /></td> <td>Shift Lever B+</td> <td>10</td> <td>Electric ATM Shift Lever, Sport Mode Switch</td> </tr> <tr> <td><a href=`/uploads/1fd/30d/df8/1fd30ddf80148f2b0c10d19440c84a1e.jpg`><img alt=`` class=`alignnone size-full wp-image-7120` height=`24` loading=`lazy` src=`/uploads/1fd/30d/df8/1fd30ddf80148f2b0c10d19440c84a1e.jpg` width=`60` /></td> <td>Multi Media</td> <td>15</td> <td>A/V & Navigation Head Unit, Front Monitor, Split Unit, MTS Module, Front DIS Switch, Rear Monitor LH/RH, Rear Console Switch, Rear Audio Switch</td> </tr> <tr> <td><a href=`/uploads/fe2/b28/90c/fe2b2890cdc2f563f21abbbb8c8c0810.jpg`><img alt=`` class=`alignnone size-medium wp-image-14687` height=`45` loading=`lazy` src=`/uploads/fe2/b28/90c/fe2b2890cdc2f563f21abbbb8c8c0810.jpg` width=`111` /></td> <td>BCM</td> <td>10</td> <td>BCM</td> </tr> <tr> <td><a href=`/uploads/6e0/444/551/6e044455104272667fae1e7766b8a831.jpg`><img alt=`` class=`alignnone size-full wp-image-10605` height=`24` loading=`lazy` src=`/uploads/6e0/444/551/6e044455104272667fae1e7766b8a831.jpg` width=`60` /></td> <td>Module 1</td> <td>10</td> <td>Head-Up Display, Rain Sensor, Rear Power Seat Switch RH</td> </tr> <tr> <td><a href=`/uploads/233/a12/8b2/233a128b22759b12661d3bcdb897b5e7.jpg`><img alt=`` class=`alignnone size-full wp-image-10693` height=`26` loading=`lazy` src=`/uploads/233/a12/8b2/233a128b22759b12661d3bcdb897b5e7.jpg` width=`60` /></td> <td>Fuel Lid</td> <td>10</td> <td>Fuel Filler Door Switch, Front Console Switch</td> </tr> <tr> <td><a href=`/uploads/7d5/cdc/521/7d5cdc521dfcc4ea41e864f5677f45f6.jpg`><img alt=`` class=`alignnone size-full wp-image-14688` height=`23` loading=`lazy` src=`/uploads/7d5/cdc/521/7d5cdc521dfcc4ea41e864f5677f45f6.jpg` width=`60` /></td> <td>Folding Mirror</td> <td>10</td> <td>Driver/Passenger Door Module</td> </tr> <tr> <td><a href=`/uploads/4fb/885/a8d/4fb885a8d1ea04e1ee481908b9c36201.jpg`><img alt=`` class=`alignnone size-full wp-image-10684` height=`27` loading=`lazy` src=`/uploads/4fb/885/a8d/4fb885a8d1ea04e1ee481908b9c36201.jpg` width=`60` /></td> <td>Air Bag</td> <td>15</td> <td>SRS Control Module, Driver/Passenger Pre-Safe Seat Belt</td> </tr> <tr> <td><a href=`/uploads/107/d20/dda/107d20ddac1b516662f5244d9dad00f2.jpg`><img alt=`` class=`alignnone size-full wp-image-10658` height=`31` loading=`lazy` src=`/uploads/107/d20/dda/107d20ddac1b516662f5244d9dad00f2.jpg` width=`60` /></td> <td>Module 4</td> <td>10</td> <td>E/R Junction Box (FAM), Multifunction Switch, Driver/Passenger Door Module</td> </tr> <tr> <td><a href=`/uploads/23b/d35/ebd/23bd35ebde20abf948dc78ee78178ce6.jpg`><img alt=`` class=`alignnone size-full wp-image-10692` height=`26` loading=`lazy` src=`/uploads/23b/d35/ebd/23bd35ebde20abf948dc78ee78178ce6.jpg` width=`60` /></td> <td>ECS</td> <td>15</td> <td>ECS Control Module</td> </tr> <tr> <td><a href=`/uploads/ff2/6f3/3fd/ff26f33fd9d99759701f39ca22097401.jpg`><img alt=`` class=`alignnone size-full wp-image-14689` height=`26` loading=`lazy` src=`/uploads/ff2/6f3/3fd/ff26f33fd9d99759701f39ca22097401.jpg` width=`60` /></td> <td>Audio (IG1)</td> <td>10</td> <td>A/V & Navigation Head Unit, MTS Module</td> </tr> <tr> <td><a href=`/uploads/2ac/f49/755/2acf49755b9effff0876d18e0588963e.jpg`><img alt=`` class=`alignnone size-full wp-image-14690` height=`25` loading=`lazy` src=`/uploads/2ac/f49/755/2acf49755b9effff0876d18e0588963e.jpg` width=`60` /></td> <td>AFLS</td> <td>10</td> <td>Head Lamp LH/RH, Adaptive Front Lighting Module, Auto Head Lamp Leveling Device Module</td> </tr> <tr> <td><a href=`/uploads/7e8/b6d/dd5/7e8b6ddd5147d6c3b26c5f4d1fe60d6a.jpg`><img alt=`` class=`alignnone size-full wp-image-10600` height=`29` loading=`lazy` src=`/uploads/7e8/b6d/dd5/7e8b6ddd5147d6c3b26c5f4d1fe60d6a.jpg` width=`60` /></td> <td>P/Door Driver</td> <td>15</td> <td>Driver Power Door Latch, Driver Power Seat Switch, Driver Door Lamp, Driver Door Mood Lamp, Driver Smart Key Outside Handle</td> </tr> <tr> <td><a href=`/uploads/5fe/d7a/61b/5fed7a61b6d8b3dee46353f9ed5bf438.jpg`><img alt=`` class=`alignnone size-full wp-image-10697` height=`25` loading=`lazy` src=`/uploads/5fe/d7a/61b/5fed7a61b6d8b3dee46353f9ed5bf438.jpg` width=`60` /></td> <td>Rear LH S/Heater</td> <td>15</td> <td>Rear CCS Control Module LH, Rear Seat Warmer Module LH</td> </tr> <tr> <td><a href=`/uploads/429/8fc/fff/4298fcfff7aed254ec7223fc2942739a.jpg`><img alt=`` class=`alignnone size-full wp-image-10625` height=`19` loading=`lazy` src=`/uploads/429/8fc/fff/4298fcfff7aed254ec7223fc2942739a.jpg` width=`60` /></td> <td>Module 2</td> <td>10</td> <td>Power Trunk Lid Control Module, Electro Chromic Mirror, Electric Parking Brake Switch, A/T Console Switch</td> </tr> <tr> <td><a href=`/uploads/0e3/e5d/526/0e3e5d5269c03059c935f484f531ba1a.jpg`><img alt=`` class=`alignnone size-full wp-image-13569` height=`43` loading=`lazy` src=`/uploads/0e3/e5d/526/0e3e5d5269c03059c935f484f531ba1a.jpg` width=`60` /></td> <td>A/CON</td> <td>10</td> <td>A/C Control Module, AQS Sensor, Driver IMS Control Module, Relax Module, Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module, Rear CCS<br /> Control, Module LH/RH, Rear Seat Warmer Module LH/RH, Alternator Resistor (Alternator, Instrument Cluster, USB Jack, Driver/Passenger CCS Control Module, Rear Console Switch, Driver/Passenger Seat Warmer Module, Rear CCS Control Module LH/RH, Rear<br /> Seat Warmer Module LH/RH)</td> </tr> <tr> <td><a href=`/uploads/0cd/74e/ecc/0cd74eecc97a1d3bdf2cab1883676291.jpg`><img alt=`` class=`alignnone size-full wp-image-10602` height=`29` loading=`lazy` src=`/uploads/0cd/74e/ecc/0cd74eecc97a1d3bdf2cab1883676291.jpg` width=`60` /></td> <td>P/Door Rear LH</td> <td>15</td> <td>Rear Power Door Latch LH, Rear Door Window Curtain LH, Rear Smart Key Outside Handle LH</td> </tr> <tr> <td><a href=`/uploads/a5a/ef9/2fd/a5aef92fd5b20c104c465d584b5179a1.jpg`><img alt=`` class=`alignnone size-full wp-image-10645` height=`27` loading=`lazy` src=`/uploads/a5a/ef9/2fd/a5aef92fd5b20c104c465d584b5179a1.jpg` width=`60` /></td> <td>Module 3</td> <td>10</td> <td>ECS Control Module, Front Console Switch, Crash Pad Switch, Blind Spot Detection Radar LH/RH, Tire Pressure Monitoring Module, Stop Lamp Switch, Steering Tilt & Telescopic Module, LDWS Camera Module, Electric Parking Brake Module, Front/Rear Parking Assist Sensor LH/RH, Front/Rear Parking Assist Sensor LH/RH (Center)</td> </tr> <tr> <td><a href=`/uploads/0b4/8f6/b79/0b48f6b792f5192cde7b6cf5e28ba108.jpg`><img alt=`` class=`alignnone size-full wp-image-14691` height=`24` loading=`lazy` src=`/uploads/0b4/8f6/b79/0b48f6b792f5192cde7b6cf5e28ba108.jpg` width=`60` /></td> <td>IAP</td> <td>10</td> <td>Active Accel Pedal Module</td> </tr> <tr> <td><a href=`/uploads/4b4/803/492/4b4803492de7e84e964ddd7f900d6b0a.jpg`><img alt=`` class=`alignnone size-full wp-image-14692` height=`25` loading=`lazy` src=`/uploads/4b4/803/492/4b4803492de7e84e964ddd7f900d6b0a.jpg` width=`60` /></td> <td>Driver D/Lock</td> <td>10</td> <td>Driver Door Module</td> </tr> <tr> <td><a href=`/uploads/a6e/088/68f/a6e08868fba217fe61cfd38dceb11e8d.jpg`><img alt=`` class=`alignnone size-full wp-image-14693` height=`24` loading=`lazy` src=`/uploads/a6e/088/68f/a6e08868fba217fe61cfd38dceb11e8d.jpg` width=`60` /></td> <td>Driver S/Heater</td> <td>15</td> <td>Driver CCS Control Module, Driver Seat Warmer Module</td> </tr> <tr> <td><a href=`/uploads/423/dc4/ddf/423dc4ddfdf394785223852227a5e886.jpg`><img alt=`` class=`alignnone size-full wp-image-14694` height=`22` loading=`lazy` src=`/uploads/423/dc4/ddf/423dc4ddfdf394785223852227a5e886.jpg` width=`60` /></td> <td>Passenger D/Lock</td> <td>15</td> <td>Passenger Door Module</td> </tr> <tr> <td><a href=`/uploads/503/555/79a/50355579ab61d3204e52f43fb73014af.jpg`><img alt=`` class=`alignnone size-full wp-image-10680` height=`28` loading=`lazy` src=`/uploads/503/555/79a/50355579ab61d3204e52f43fb73014af.jpg` width=`60` /></td> <td>Power Trunk Lid</td> <td>30</td> <td>Power Trunk Lid Control Module</td> </tr> <tr> <td><a href=`/uploads/fea/924/480/fea92448089acbe195988de488b4f0ea.jpg`><img alt=`` class=`alignnone size-full wp-image-14695` height=`23` loading=`lazy` src=`/uploads/fea/924/480/fea92448089acbe195988de488b4f0ea.jpg` width=`60` /></td> <td>Passenger P/Seat</td> <td>30</td> <td>Relax Module</td> </tr> <tr> <td><a href=`/uploads/ac1/45c/841/ac145c841826f5820ef350986cc5629b.jpg`><img alt=`` class=`alignnone size-full wp-image-14696` height=`26` loading=`lazy` src=`/uploads/ac1/45c/841/ac145c841826f5820ef350986cc5629b.jpg` width=`60` /></td> <td>Safety Window RH</td> <td>30</td> <td>Passenger Power Window Module, Rear Power Window Module RH</td> </tr> <tr> <td><a href=`/uploads/f82/21f/bb1/f8221fbb1fa1549970e5886f93cb4d4a.jpg`><img alt=`` class=`alignnone size-full wp-image-14697` height=`27` loading=`lazy` src=`/uploads/f82/21f/bb1/f8221fbb1fa1549970e5886f93cb4d4a.jpg` width=`60` /></td> <td>Safety Window LH</td> <td>30</td> <td>Driver Power Window Module, Rear Power Window Module LH</td> </tr> </tbody> </table> <h3>Instrument panel (Passanger’s side fuse panel)</h3> <figure aria-describedby=`caption-attachment-14714` class=`wp-caption alignnone` id=`attachment_14714` style=`width: 300px`><img alt=`Hyundai Equss - fuse box - instrument panel (passenger's side)

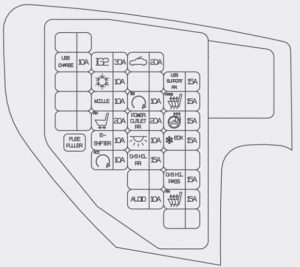

Hyundai Equss – fuse box –
instrument panel (passenger’s side)

Symbol Fuse name Ampere rating [A] Protected component
USB Charge 10 USB Jack (6:4 Seat)
IG2 30 E/R Junction Box (Fuse – WIPER (IG2), WASHER)
A/CON 10 E/R Junction Box (Blower Relay), A/C Control Module, Ionizer, Active Incar Sensor, LCD Panel Switch
Module 10 Smart Junction Box LH (IG2 Power), Around View Unit, Camera Module
Rear P/Seat 20 Rear Power Seat Relay Box LH, Rear Seat Lumbar Support Control Module LH
E-Shifter 10 USB Jack (6:4 Seat), Electric ATM Shift Lever
PDM ACC 10 Smart Key Control Module, BCM
Sunroof 20 Sunroof Motor
PDM IG2 10 Smart Key Control Module, BCM
Rear P/Outlet 20 6:4 Seat – Rear Power Outlet #1/#2,
5:5 Seat – Rear Power Outlet, Rear Accessory Socket
Room Lamp 10 E/R Fuse & Relay Box (Power Outlet FRT Relay), Front Room Lamp
Rear P/Door 15 Rear Power Door Latch RH, Rear Door Window Curtain RH, Rear Smart Key Outside Handle RH
Audio 10 A/V & Navigation Head Unit, Analogue Clock, Split Unit, Front Monitor, AMP, MTS Module, Front DIS Switch, Camera Module, Around View Unit, Rear Monitor LH/RH, Rear Audio Switch, Rear Console Switch (6:4 Seat)
Rear L/Support 15 Rear Power Seat Relay Box RH, Rear Seat Lumbar Support Control Module RH
Passenger
S/Heat		 15 Passenger CCS Control Module, Passenger Seat Warmer Module
Steering
W/Heated		 15 Clock Spring (Steering Wheel Remote Control – Steering Wheel Heated Module)
Cool Box 15 Cool Box, Rear Console Swtich, Rear Seat Lumbar Support Control Module RH
Passenger
P/Door		 15 Passenger Power Door Latch, Passenger Power Seat Switch, Passenger Smart Key Outside Handle
Rear RH
S/Heat		 15 Rear CCS Control Module RH, Rear Seat Warmer Module RH



Engine compartment fuse panel (Driver’s side)

Hyundai Equss - fuse box - engine compartment (driver's side)` class=`size-medium wp-image-14715` height=`300` loading=`lazy` sizes=`(max-width: 264px) 100vw, 264px` src=`/uploads/db3/6e4/37e/db36e437ed44fdbb929318f2e7cc007f.jpg` srcset=`/uploads/db3/6e4/37e/db36e437ed44fdbb929318f2e7cc007f.jpg 264w, 461w` width=`264` /> <figcaption class=`wp-caption-text` id=`caption-attachment-14715`>Hyundai Equss – fuse box –<br /> engine compartment (driver’s side)</figcaption> </figure> <figure class=`wp-caption alignnone` id=`attachment_14390`> </figure> <table class=`table table-hover table-bordered`> <tbody> <tr> <td>Description</td> <td>Ampere rating [A]</td> <td>Protected component</td> </tr> <tr> <td>ALT</td> <td>200</td> <td>Alternator, E/R Fuse & Relay Box (Fuse – I/P POWER RH, EHPS, C/FAN, PDM (ACC), ECS, TRUNK, AMP, H/LAMP WASHER, VACUUM PUMP, POWER OUTLET FRT)</td> </tr> <tr> <td>I/P POWER LH</td> <td>80</td> <td>Smart Junction Box LH (Fuse – F1/F2/F3/F4/F8/F9/F12/F15/F17/F18/F22/F23/F29/F32/F33/F36/F40/F41/<br /> F44/F45/F46/F47/F48, Leak Current Autocut Device)</td> </tr> <tr> <td>I/P POWER RH</td> <td>60</td> <td>I/P Junction Box RH (Fuse – F2/F9/F12/F17/F20/F21/F25/F26)</td> </tr> <tr> <td>C/FAN</td> <td>70</td> <td>C/FAN Relay</td> </tr> <tr> <td>EHPS</td> <td>80</td> <td>EHPS Module</td> </tr> <tr> <td>ESC 1</td> <td>40</td> <td>ESC Module, Multipurpose Check Connector</td> </tr> <tr> <td>ESC 2</td> <td>40</td> <td>ESC Module, Multipurpose Check Connector</td> </tr> <tr> <td>PDM (IG1)</td> <td>40</td> <td>PDM (IG1) Relay</td> </tr> <tr> <td>PDM (IG2)</td> <td>30</td> <td>PDM (IG2) Relay</td> </tr> <tr> <td>P/SEAT (DRV)</td> <td>30</td> <td>Driver IMS Control Module, Driver Lumbar Support Valve</td> </tr> <tr> <td>ECS</td> <td>40</td> <td>ECS Relay</td> </tr> <tr> <td>AMP</td> <td>30</td> <td>AMP</td> </tr> <tr> <td>PDM (ACC)</td> <td>30</td> <td>PDM (ACC) Relay</td> </tr> <tr> <td>STOP LAMP</td> <td>15</td> <td>Stop Signal Electronic Module</td> </tr> <tr> <td>B/UP LAMP</td> <td>10</td> <td>B/UP LAMP Relay</td> </tr> <tr> <td>H/LAMP WASHER</td> <td>20</td> <td>H/LAMP WASHER Relay</td> </tr> <tr> <td>VACUUM PUMP</td> <td>20</td> <td>VACUUM PUMP Relay</td> </tr> <tr> <td>POWER OUTLET FRT</td> <td>25</td> <td>POWER OUTLET FRT Relay</td> </tr> <tr> <td>TRUNK</td> <td>10</td> <td>TRUNK Relay</td> </tr> </tbody> </table> <p> </p> <h3>Engine compartment fuse panel (Passenger’s side)</h3> <figure aria-describedby=`caption-attachment-14716` class=`wp-caption alignnone` id=`attachment_14716` style=`width: 233px`><img alt=`Hyundai Equss - fuse box - engine compartment (passenger's side)
Hyundai Equss – fuse box –
engine compartment (passenger’s side)

Description Ampere rating [A] Protected component
WIPER (B+) 30 Electronic Control Wiper Module
FAM 2 (B+) 40 FAM
FAM 1 (B+) 40 FAM
START 30 Start Relay
WASHER 15 Washer Relay
WIPER (IG2) 10 Electronic Control Wiper Module
DEICER 15 Deicer Relay
CRUISE (B+) 10 H/Lamp Relay, Smart Cruise Control Module
HORN 15 Horn Relay
EPB 2 15 Electric Parking Brake Module
EPB 1 15 Electric Parking Brake Module
A/CON 10 A/C Control Module
BLOWER 40 Blower Relay
PRESAFETY SEAT BELT LH 40 Driver Pre-Safe Seat Belt
RR HTD 40 RR HTD Relay
PRESAFETY SEAT BELT RH 40 Passenger Pre-Safe Seat Belt
ECU (IG1) 10 ECM, Alternator (G8BE)
ESC 10 ESC Module, E/R Fuse & Relay Box (Multipurpose Check Connector)
EHPS 10 EHPS Module
AFLS 10 Head Lamp LH/RH
TCU 15 TCM, Transmission Range Switch, Transmission Park Position Sensor & Switch
HTD MIRR 10 Driver/Passenger Power Outside Mirror
F/PUMP 20 F/Pump Relay
ROOM LAMP 10 Room Lamp Relay
ECU (B+) 15 ECM/TCM, Injector Drive Box (G6DJ)
B/UP LAMP 10 Alternator (G6DJ), E/R Fuse & Relay Box (Vacuum Pump Relay (G6DJ), B/Up Lamp Relay, P/N Relay), Steering Angle Sensor, Brake Vacuum Switch (G6DJ)
CRUISE (IG1) 10 Smart Cruise Control Module
INJECTOR (IG1) 10 Injector Drive Box
H/LAMP LH 15 Head Lamp LH
H/LAMP RH 15 Head Lamp RH
SENSOR 3 10 ECM, F/Pump Relay, Camshaft Position Sensor (BANK1/BANK2) (Intake/Exhaust) (G8BE)
SENSOR 2 10 ECM (G6DJ), Variable Intake Solenoid Valve (G6DJ), Canister Purge Solenoid Valve (G6DJ), Oil Control Valve #1 ~ #4 E/R Fuse & Relay Box (C/Fan Relay), Purge Control Solenoid Valve (G8BE)
SENSOR 1 10 ECM, Oxygen Sensor #1 ~ #4
INJECTOR (B+) 15 Injector Drive Box
IGN COIL 20 Condenser #1/#2, Ignition Coil #1 ~ #6 (G6DJ), Ignition Coil #1 ~ #8 (G8BE)
ECU 30 ECU Relay



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
