Lexus ES300 (2002 – 2003) – fuse box diagram

Year of production: 2002, 2003

Engine compartment

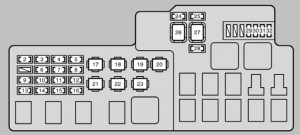

Lexus ES - fuse box - engine compartment
Lexus ES – fuse box – engine compartment
Lexus ES - fuse box - engine compartment
Lexus ES – fuse box – engine compartment

Driver’s side instrument panel

Lexus ES - fuse box - driver's side instrument panel` class=`wp-image-13131 size-medium` height=`215` loading=`lazy` sizes=`(max-width: 300px) 100vw, 300px` src=`/uploads/800/ccf/2f7/800ccf2f705fd95cc4347f11ee911046.jpg` srcset=`/uploads/800/ccf/2f7/800ccf2f705fd95cc4347f11ee911046.jpg 300w,  403w` width=`300` />

<figcaption class=`wp-caption-text` id=`caption-attachment-13131`>Lexus ES – fuse box – driver’s side instrument panel</figcaption>
</figure>

<table class=`table table-hover table-bordered`>
	<tbody>
		<tr>
			<td colspan=`2Fuse Ampere rating [A] Circuit protected 1 ABS NO.4 7,5 Anti−lock brake system, vehicle skid control system, traction control system, brake assist system 2 A/F 25 Multiport fuel injection system/sequential multiport fuel injection system 3 DOOR1 25 Multiplex communication system (power door lock system, auto−door locking system, wireless remote control system) 4 TEL 5 No circuit 5 AM2 30 All components in “IGN” and “IG2” fuses and starting system 6 EFI 20 Multiport fuel injection system/sequential multiport fuel injection system 7 ALT−S 5 Charging system 8 HEAD LH UPR 10 Left−hand headlight (high beam) 9 ETCS 10 Multiport fuel injection system/sequential multiport fuel injection system 10 HORN 10 Horns 11 IGN 15 Starting system 12 HEAD RH UPR 10 Right−hand headlight (high beam) 13 HAZ 15 Emergency flashers 14 D.C.C 30 All components in “ECU−B”, “RAD NO.1” and “DOME” fuses 15 IG2 10 Multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system, front seat belt pretensioners, cruise control system 16 ST 5 Starting system 17 ADJ PDL 30 Power adjustable pedals 18 CDS 30 Electric cooling fan 19 ABS NO.2 40 Anti−lock brake system, vehicle skid control system, traction control system, brake assist system 20 MAIN 40 All components in “HEAD LH LWR”, “HEAD RH LWR”, “HEAD LH UPR”, “HEAD RH UPR” and “DRL” fuses 21 ABS NO.3 40 Anti−lock brake system, vehicle skid control system, traction control system, brake assist system 22 HTR 50 Air conditioning system 23 RDI 30 Electric cooling fan 24 SPARE 5 Spare fuse 25 SPARE 10 Spare fuse 26 ABS NO.1 60 All components in “RDI FAN”, “ABS NO.2”, “ABS NO.3”, “CDS”, “HTR (50 A)” and “ADJ PDL” fuses and anti−lock brake system, vehicle skid control system, traction control system, brake assist system 27 ALT 120 All components in “DEF”, “PWR NO.1”, “PWR NO.2”, “PWR NO.3”, “PWR NO.4”, “STOP”, “DOOR NO.2”, “OBD”, “PWR SEAT”, “FUEL OPEN”, “FOG”, “AMP”, “PANEL”, “TAIL”, “AM1”, “CIG”, “POWER POINT”, “RAD NO.2”, “ECU−ACC”, “GAUGE1”, “GAUGE2”, “ECU−IG”, “WIPER”, “WASHER”, “HTR (10 A)”, “SEAT HTR”, and “SUN−SHADE” fuses 28 SPARE 15 Spare fuse 29 A/C 10 Air conditioning system 30 DRL 5 Daytime running light system 31 HEAD RH LWR 15 Right−hand headlight (low beam) 32 HEAD LH LWR 15 Left−hand headlight (low beam) and front fog lights 33 ECU−B 10 Multiplex communication system (power door lock system, security system, auto−door locking system, automatic light control system, headlight delay off system, tail light auto cut system, illuminated entry system, daytime running light system, wireless remote control system) air conditioning system, electronic modulated suspension, driving position memory system 34 DOME 7,5 Ignition switch light, interior light, personal lights, foot lights, door courtesy lights, trunk light, vanity lights, garage door opener, clock, outside temperature gauge, multi−information display 35 CIG 15 Cigarette lighter 36 ECU−ACC 5 Power rear view mirrors, clock, multi−information display, driving position memory system 37 RAD NO.2 10 Car audio system, navigation system 38 POWER POINT 15 Power outlet 39 RAD NO.1 20 Car audio system, navigation system 40 GAUGE1 10 Gauges and meters, clock, outside temperature gauge, multi−information display, shift lock system 41 ECU−IG 10 SRS airbag system, power windows, anti−lock brake system, electronic modulated suspension, driving position memory system 42 WIPER 25 Windshield wipers 43 HTR 10 Air conditioning system 44 MIR HTR 10 Outside rear view mirror heaters 45 AM1 5 Starting system 46 FOG 15 Front fog lights 47 SUN−SHADE 15 Rear sunshade 48 GAUGE2 10 Auto anti−glare inside rear view mirror, compass, back−up lights, automatic light control system, automatic headlight leveling system, cruise control system, seat belt reminder lights 49 PANEL 10 Glove box light, console box light, clock, outside temperature gauge, multi−information display, instrument cluster lights, instrument panel lights, overdrive−off indicator light 50 TAIL 10 Tail lights, parking lights, license plate lights 51 PWR NO.4 20 Rear passenger’s power window (left side) 52 PWR NO.2 20 Front passenger’s door lock system, front passenger’s power window 53 OBD 7,5 On−board diagnosis system 54 SEAT HTR 20 Seat heaters 55 WASHER 15 Windshield washer 56 FAN RLY 10 Electric cooling fans 57 STOP 15 Stop lights, high mounted stoplight 58 FUEL OPEN 5 Fuel filler door opener 59 DOOR NO.2 25 Multiplex communication system (power door lock system, auto−door locking system, wireless remote control system) 60 AMP 25 Car audio system 61 PWR NO.3 20 Rear passenger’s power window (right side) 62 PWR SEAT 30 Power seats, driving position memory system 63 PWR NO.1 30 Driver’s door lock system, driver’s power window, electric moon roof 64 DEF 40 Rear window defogger

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
